Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

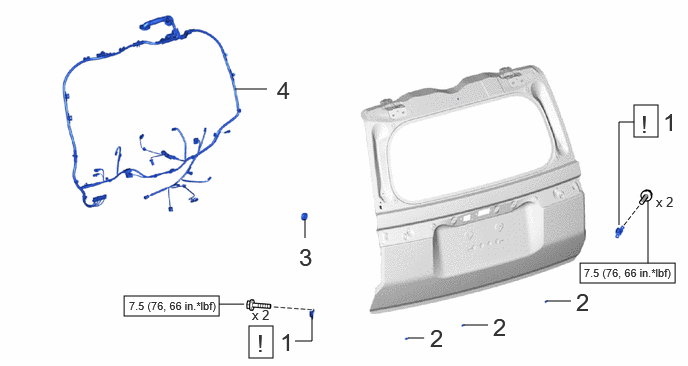

Fig 1: Back Door Reassembly Components With Torque Specifications (1 Of 7)
GTY1226653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 BACK DOOR LOWER STOPPER 67281F See step  1 - -
2 DOOR DUST PROOF SEAL 67837L - - -
3 HOLE PLUG - - - -
4 NO. 1 BACK DOOR WIRE 82184 - - -
N.m (kgf/cm, ft.lbf): Specified torque - -

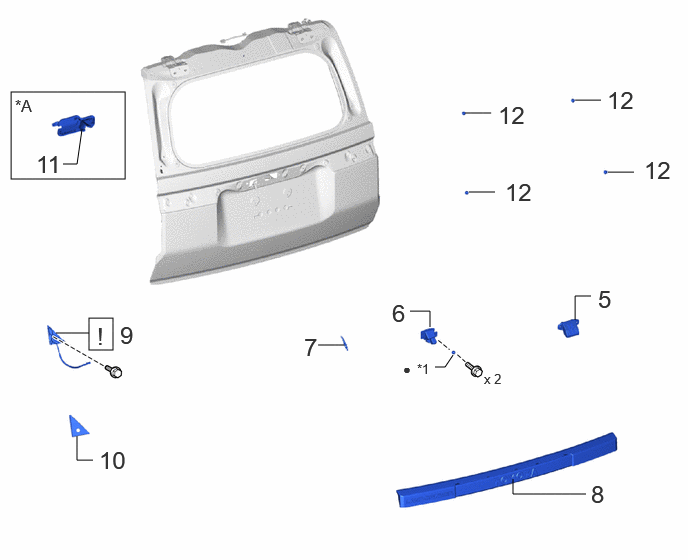

Fig 2: Back Door Reassembly Components (2 Of 7)
GTY1220427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
5 LICENSE PLATE LIGHT ASSEMBLY WITH BACK DOOR OPENER SWITCH 812D0 - - -
6 REAR TELEVISION CAMERA ASSEMBLY 86790D - - -
7 NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY 867F0A - - -
8 BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY 76801 - - -
9 BACK DOOR OUTSIDE LOWER GARNISH SUB-ASSEMBLY LH 76806 See step  9 - -
10 BACK DOOR OUTSIDE UPPER GARNISH SUB-ASSEMBLY LH 76804 - - -
11 BACK DOOR NO. 1 SERVICE HOLE COVER 67765A - - -
12 BACK DOOR PANEL CUSHION 67005B - - -
*A w/ Cover - -
*1 SCREW GROMMET - -
• Non-reusable part - -

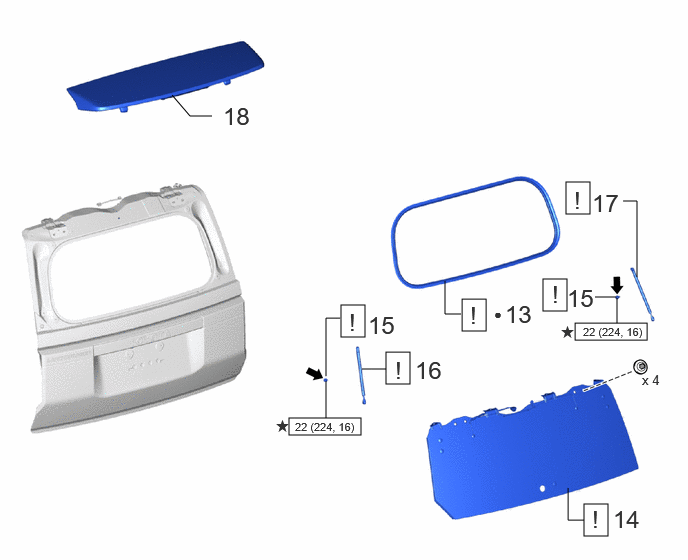

Fig 3: Back Door Reassembly Components With Torque Specifications (3 Of 7)
GTY1224371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
13 BACK DOOR NO. 2 WEATHERSTRIP 67882C See step  13 - -
14 BACK DOOR GLASS 68131 See step  14 - -
15 BACK WINDOW STAY BOLT - See step  15 - -
16 BACK WINDOW STAY ASSEMBLY LH 68940 See step  16 - -
17 BACK WINDOW STAY ASSEMBLY RH 68930 See step  16 - -
18 REAR SPOILER ASSEMBLY - - - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent * Precoated part

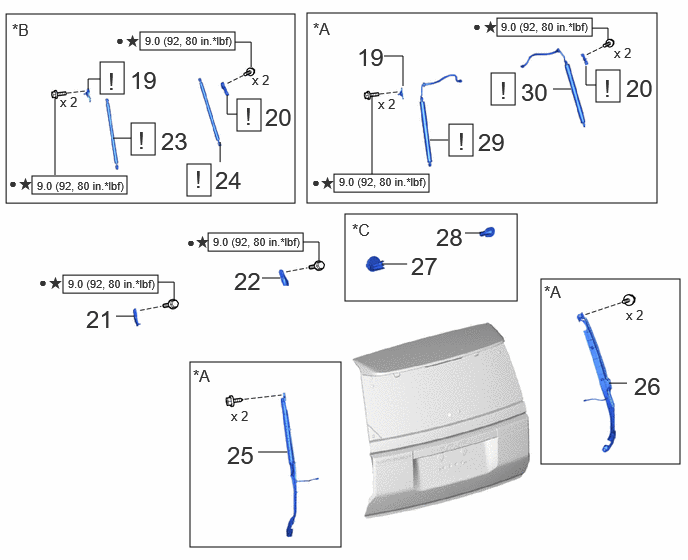

Fig 4: Back Door Reassembly Components With Torque Specifications (4 Of 7)
GTY1224438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
19 BACK DOOR UPPER DAMPER STAY BRACKET LH 68946 See step  19 - -
20 BACK DOOR UPPER DAMPER STAY BRACKET RH 68945 See step  19 - -
21 BACK DOOR LOWER DAMPER STAY BRACKET LH 68948 - - -
22 BACK DOOR LOWER DAMPER STAY BRACKET RH 68947 - - -
23 BACK DOOR STAY ASSEMBLY LH 68960C See step  23 - -
24 BACK DOOR STAY ASSEMBLY RH 68950C See step  23 - -
25 POWER BACK DOOR SENSOR ASSEMBLY LH 84280D - - -
26 POWER BACK DOOR SENSOR ASSEMBLY RH 84270G - - -
27 BACK DOOR NO. 4 SERVICE HOLE COVER 67768C - - -
28 BACK DOOR NO. 3 SERVICE HOLE COVER 67767B - - -
29 POWER BACK DOOR UNIT ASSEMBLY LH 68920A See step  29 - -
30 POWER BACK DOOR UNIT ASSEMBLY RH 68910B See step  29 - -
*A w/ Power Back Door *B w/o Power Back Door
*C w/ Cover - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -

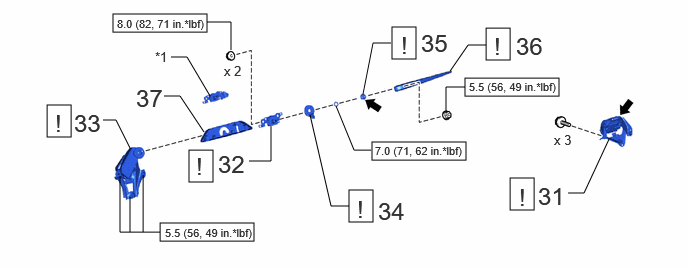

Fig 5: Back Door Reassembly Components With Torque Specifications (5 Of 7)
GTY1226311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
31 BACK WINDOW LOCK ASSEMBLY 69370E See step  31 - -
32 REAR WIPER LINK ASSEMBLY 85160R See step  32 - -
33 REAR WIPER MOTOR ASSEMBLY 85110R See step  33 - -
34 REAR WIPER LINK PIVOT WITH WASHER PACKING NUT 85148R See step  34 - -
35 REAR WIPER LINK CAP 85176R See step  35 - -
36 REAR WIPER ARM AND BLADE ASSEMBLY - See step  36 - -
37 REAR WIPER SHAFT COVER 85132A - - -
*1 REAR WIPER LINK FRAME - -
N.m (kgf/cm, ft.lbf): Specified torque MP Grease

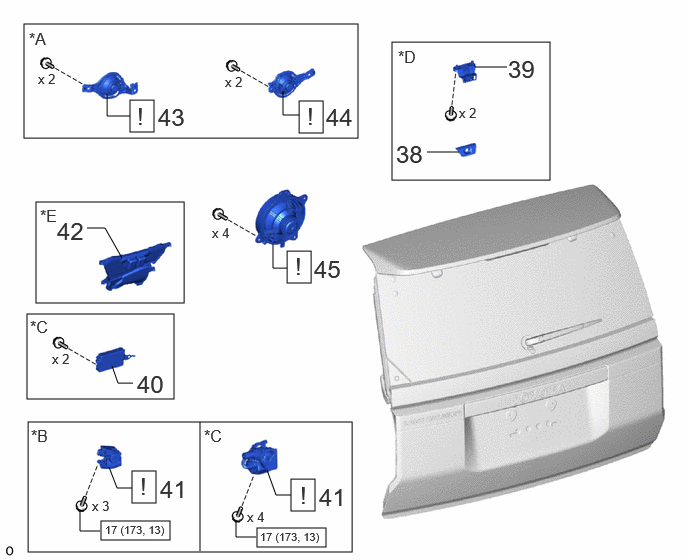

Fig 6: Back Door Reassembly Components With Torque Specifications (6 Of 7)
GTY1225371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
38 BACK DOOR GARNISH 67935C - - -
39 REAR INNER MIRROR CAMERA ASSEMBLY 867C0B - - -
40 MULTIPLEX NETWORK DOOR ECU 89222A - - -
41 BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH 69350P See step  41 - -
42 BACK DOOR NO. 2 SERVICE HOLE COVER 67766 - - -
43 NO. 2 SPEAKER ASSEMBLY WITH BRACKET 86150A See step  43 - -
44 SPEAKER ASSEMBLY WITH BRACKET 86150H See step  44 - -
45 REAR NO. 3 SPEAKER ASSEMBLY 86160Z See step  45 - -
*A for 14 Speakers *B w/o Power Back Door
*C w/ Power Back Door *D w/ Digital Inner Mirror
*E w/ Cover - -
N.m (kgf/cm, ft.lbf): Specified torque - -

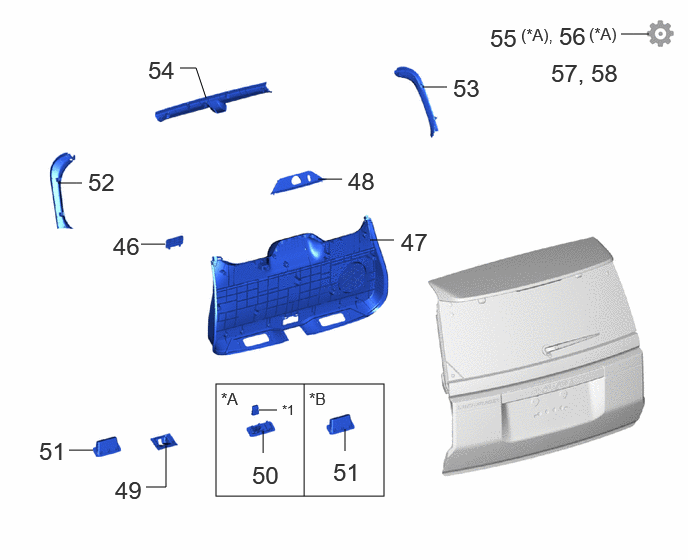

Fig 7: Back Door Reassembly Components (7 Of 7)
GTY1220058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
46 BACK DOOR SERVICE HOLE COVER RH 67847 - - -
47 BACK DOOR TRIM PANEL ASSEMBLY 64780A - - -
48 BACK DOOR LOCK COVER 64798 - - -
49 BACK DOOR LOCK COVER 69321 - - -
50 BACK DOOR INSIDE HANDLE 69212C - - -
51 BACK DOOR FINISH COVER 75837E - - -
52 BACK DOOR SIDE GARNISH LH 67938A - - -
53 BACK DOOR SIDE GARNISH RH 67937B - - -
54 BACK DOOR CENTER GARNISH 67939B - - -
55 INITIALIZE POWER BACK DOOR SYSTEM - - - See step  55
56 INSPECT POWER BACK DOOR SYSTEM - - - See step  56
57 PERFORM CALIBRATION - - - See step  57
58 INSPECT REAR WIPER ARM AND BLADE ASSEMBLY - - - See step  58
*A w/ Power Back Door *B w/o Power Back Door
*1 DOOR CONTROL SWITCH COVER - -
