Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the back door removal/installation are shown below.

NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Front television camera assembly, radiator grille assembly or front bumper assembly Rear television camera assembly Side television camera assembly LH or outer rear view mirror assembly LH Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment HINT: Replacement or removal and installation of 2 or more parts	Panoramic View Monitor System Multi-terrain Monitor system	Refer to BEFORE STARTING ADJUSTMENT [02/2024 - ]
Rear television camera assembly (Including removal and installation)	Rear television camera view adjustment	Panoramic View Monitor System Multi-terrain Monitor system	Refer to BEFORE STARTING ADJUSTMENT [02/2024 - ]
Multiplex network door ECU Power back door unit assembly LH* Power back door unit assembly RH*	Reset back door close position	Power back door system	Refer to INITIALIZATION [02/2024 - ]

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

COMPONENTS (DISASSEMBLY)

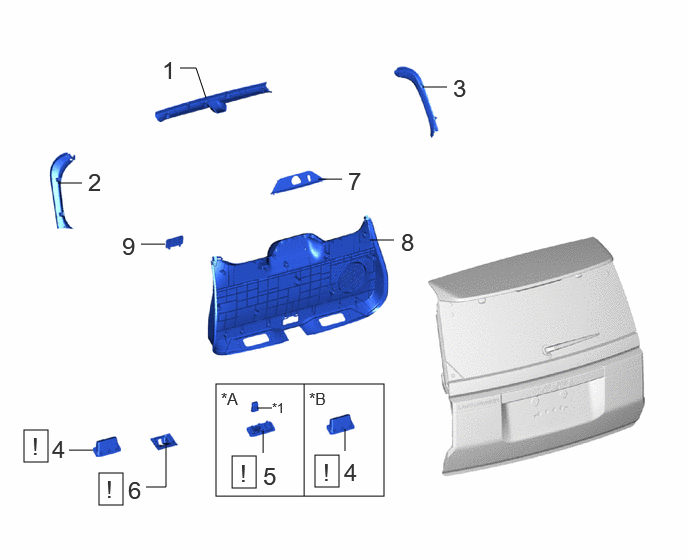

Fig 1: Back Door Disassembly Components (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BACK DOOR CENTER GARNISH	67939B	-	-	-
2	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	BACK DOOR FINISH COVER	75837E	See step 4	-	-
5	BACK DOOR INSIDE HANDLE	69212C	See step 5	-	-
6	BACK DOOR LOCK COVER	69321	See step 6	-	-
7	BACK DOOR LOCK COVER	64798	-	-	-
8	BACK DOOR TRIM PANEL ASSEMBLY	64780A	-	-	-
9	BACK DOOR SERVICE HOLE COVER RH	67847	-	-	-

*A	w/ Power Back Door	*B	w/o Power Back Door
*1	DOOR CONTROL SWITCH COVER	-	-

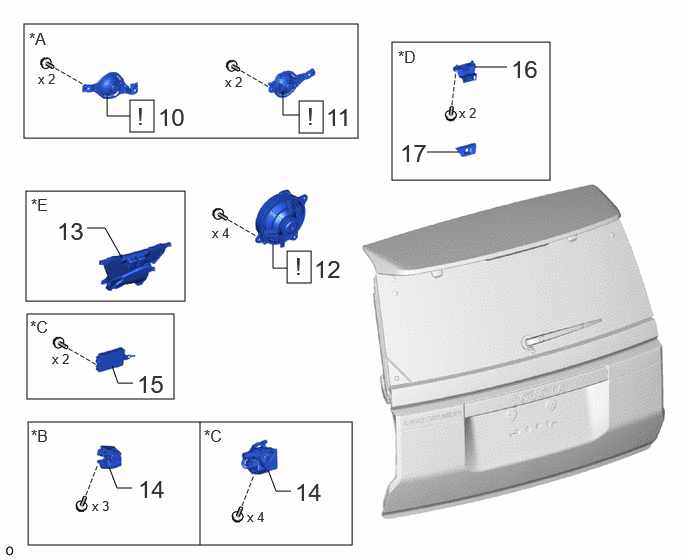

Fig 2: Back Door Disassembly Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
10	NO. 2 SPEAKER ASSEMBLY WITH BRACKET	86150A	See step 10	-	-
11	SPEAKER ASSEMBLY WITH BRACKET	86150H	See step 11	-	-
12	REAR NO. 3 SPEAKER ASSEMBLY	86160Z	See step 12	-	-
13	BACK DOOR NO. 2 SERVICE HOLE COVER	67766	-	-	-
14	BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH	69350P	-	-	-
15	MULTIPLEX NETWORK DOOR ECU	89222A	-	-	-
16	REAR INNER MIRROR CAMERA ASSEMBLY	867C0B	-	-	-
17	BACK DOOR GARNISH	67935C	-	-	-

*A	for 14 Speakers	*B	w/o Power Back Door
*C	w/ Power Back Door	*D	w/ Digital Inner Mirror
*E	w/ Cover	-	-

Fig 3: Back Door Disassembly Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
18	REAR WIPER SHAFT COVER	85132A	-	-	-
19	REAR WIPER ARM AND BLADE ASSEMBLY	-	-	-	-
20	REAR WIPER LINK CAP	85176R	-	-	-
21	REAR WIPER LINK PIVOT WITH WASHER PACKING NUT	85148R	See step 21	-	-
22	REAR WIPER LINK ASSEMBLY	85160R	See step 22	-	-
23	REAR WIPER MOTOR ASSEMBLY	85110R	-	-	-
24	BACK WINDOW LOCK ASSEMBLY	69370E	-	-	-

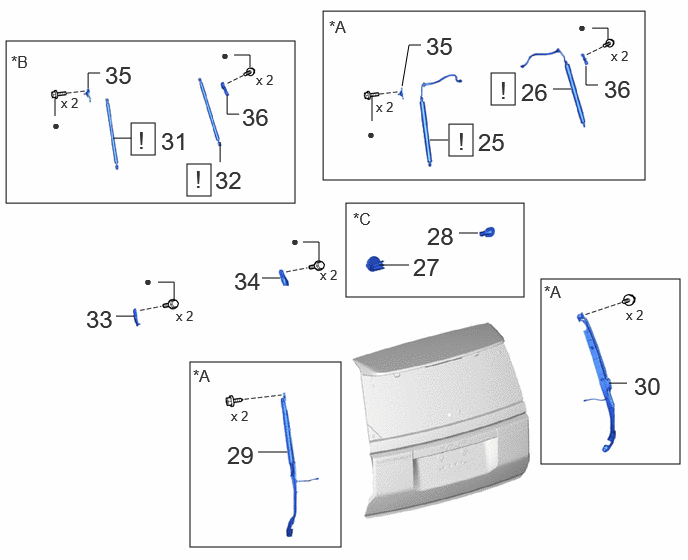

Fig 4: Back Door Disassembly Components (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
25	POWER BACK DOOR UNIT ASSEMBLY LH	68920A	See step 25	-	-
26	POWER BACK DOOR UNIT ASSEMBLY RH	68910B	See step 25	-	-
27	BACK DOOR NO. 4 SERVICE HOLE COVER	67768C	-	-	-
28	BACK DOOR NO. 3 SERVICE HOLE COVER	67767B	-	-	-
29	POWER BACK DOOR SENSOR ASSEMBLY LH	84280D	-	-	-
30	POWER BACK DOOR SENSOR ASSEMBLY RH	84270G	-	-	-
31	BACK DOOR STAY ASSEMBLY LH	68960C	See step 31	-	-
32	BACK DOOR STAY ASSEMBLY RH	68950C	See step 31	-	-
33	BACK DOOR LOWER DAMPER STAY BRACKET LH	68948	-	-	-
34	BACK DOOR LOWER DAMPER STAY BRACKET RH	68947	-	-	-
35	BACK DOOR UPPER DAMPER STAY BRACKET LH	68946	-	-	-
36	BACK DOOR UPPER DAMPER STAY BRACKET RH	68945	-	-	-

*A	w/ Power Back Door	*B	w/o Power Back Door
*C	w/ Cover	-	-
•	Non-reusable part	-	-

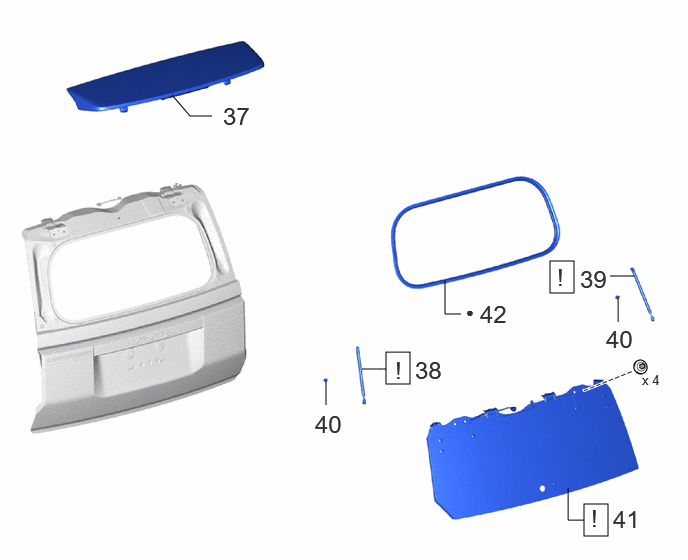

Fig 5: Back Door Disassembly Components (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
37	REAR SPOILER ASSEMBLY	-	-	-	-
38	BACK WINDOW STAY ASSEMBLY LH	68940	See step 38	-	-
39	BACK WINDOW STAY ASSEMBLY RH	68930	See step 38	-	-
40	BACK WINDOW STAY BOLT		-	-	-
41	BACK DOOR GLASS	68131	See step 41	-	-
42	BACK DOOR NO. 2 WEATHERSTRIP	67882C		-	-

•

Non-reusable part

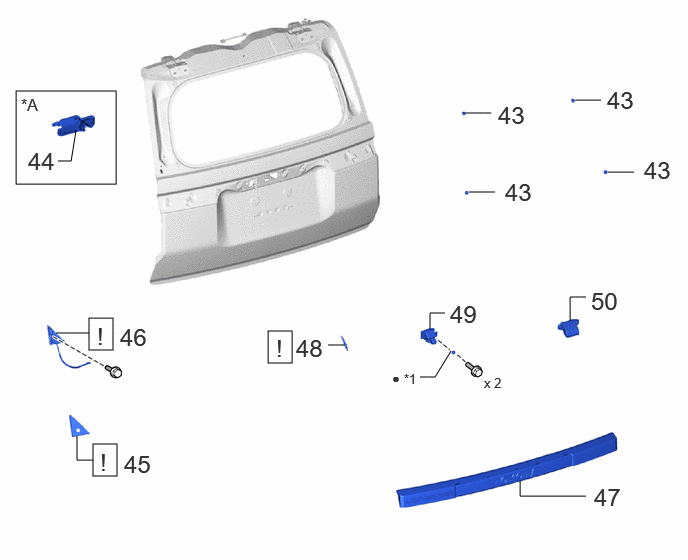

Fig 6: Back Door Disassembly Components (6 Of 7)

Procedure		Part Name Code
43	BACK DOOR PANEL CUSHION	67005B	-	-	-
44	BACK DOOR NO. 1 SERVICE HOLE COVER	67765A	-	-	-
45	BACK DOOR OUTSIDE UPPER GARNISH SUB-ASSEMBLY LH	76804	See step 45	-	-
46	BACK DOOR OUTSIDE LOWER GARNISH SUB-ASSEMBLY LH	76806	See step 46	-	-
47	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY	76801	See step 47	-	-
48	NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY	867F0A	See step 48	-	-
49	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-
50	LICENSE PLATE LIGHT ASSEMBLY WITH BACK DOOR OPENER SWITCH	812D0	-	-	-

*A	w/ Cover	-	-
*1	SCREW GROMMET	-	-
•	Non-reusable part	-	-

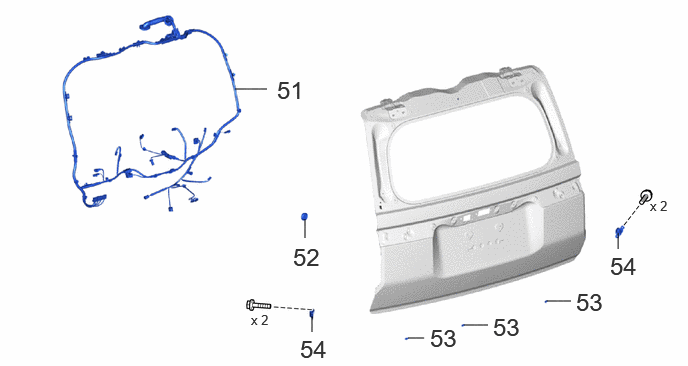

Fig 7: Back Door Disassembly Components (7 Of 7)

Procedure		Part Name Code
51	NO. 1 BACK DOOR WIRE	82184	-	-	-
52	HOLE PLUG	-	-	-	-
53	DOOR DUST PROOF SEAL	67837L	-	-	-
54	BACK DOOR STOPPER LOWER	67281F	-	-	-
