Caution / Notice / Hint

HINT:

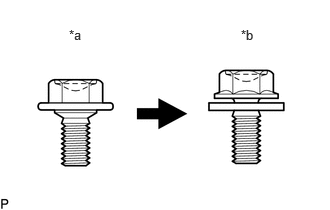

• Centering bolts are used to install the door hinges to the vehicle body and door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts (with washers) when making adjustments.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *a	Centering Bolt
  *b	Standard Bolt

• The specified torque for standard bolts is shown in the standard bolt chart.

  Refer to SPECIFIED TORQUE FOR STANDARD BOLTS [02/2024 - ]
