Removal [02/2024 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

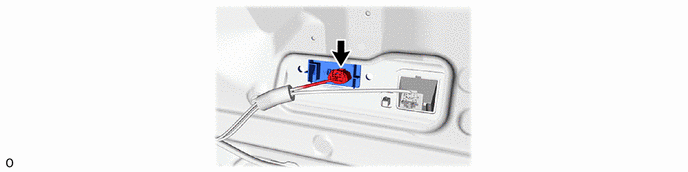

  2. REMOVE LICENSE PLATE LIGHT ASSEMBLY WITH BACK DOOR OPENER SWITCH
    1. GTY1222637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
