Removal [02/2024 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    See step  1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    See step  2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  4. REMOVE BACK DOOR FINISH COVER
    See step  4
  5. REMOVE BACK DOOR INSIDE HANDLE
    See step  5
  6. REMOVE BACK DOOR LOCK COVER
    See step  6
  7. REMOVE BACK DOOR LOCK COVER

    See step  7

  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    See step  8

  9. REMOVE MULTIPLEX NETWORK DOOR ECU

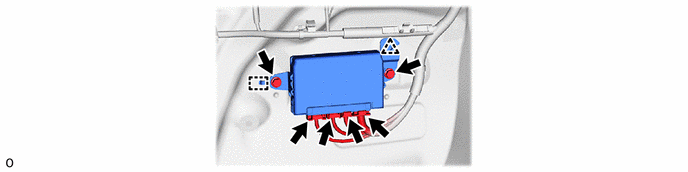

    1. GTY1222660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
