HINT:

• Use the same procedure for the LH side and RH side.
• The procedure below is for the LH side.

COMPONENTS (REASSEMBLY)

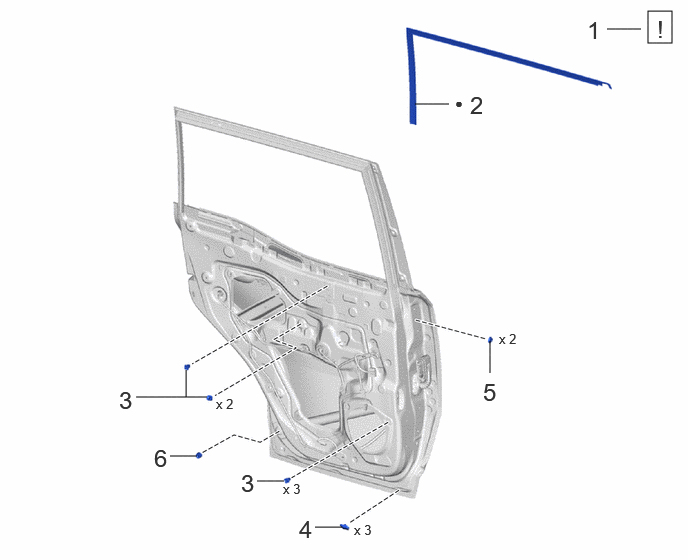

Fig 1: Rear Door Reassembly Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step  1	-	-
2	NO. 2 BLACK OUT TAPE LH	75924C	-	-	-
3	SCREW GROMMET	-	-	-	-
4	REAR DOOR DUST PROOF SEAL	67837C	-	-	-
5	HOLE PLUG	-	-	-	-
6	REAR DOOR PANEL CUSHION	67003C	-	-	-

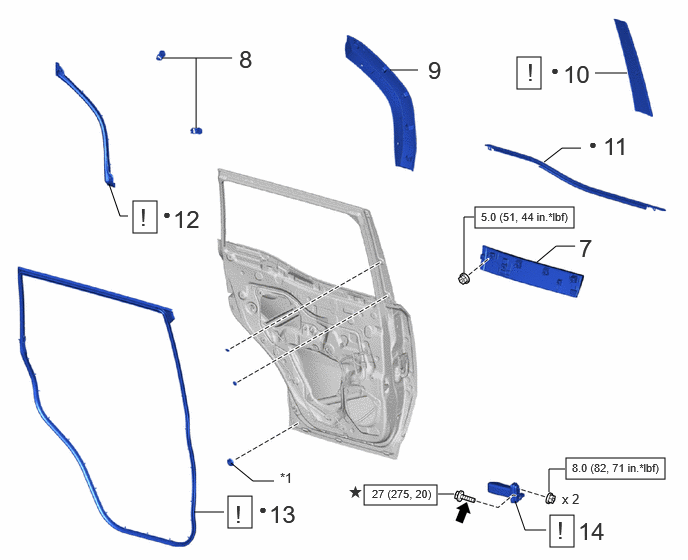

Fig 2: Rear Door Reassembly Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
7	REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH	75078	-	-	-
8	OUTSIDE MOULDING RETAINER	75392H	-	-	-
9	OUTSIDE MOULDING SET LH	75062	-	-	-
10	REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)	75762B	See step  10	-	-
11	REAR DOOR BELT MOULDING LH	75722A	-	-	-
12	REAR DOOR NO. 2 WEATHERSTRIP LH	67888A	See step  12	-	-
13	REAR DOOR WEATHERSTRIP LH	67872	See step  13	-	-
14	REAR DOOR CHECK ASSEMBLY LH	68640A	See step  14	-	-

*1	HOLE PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part

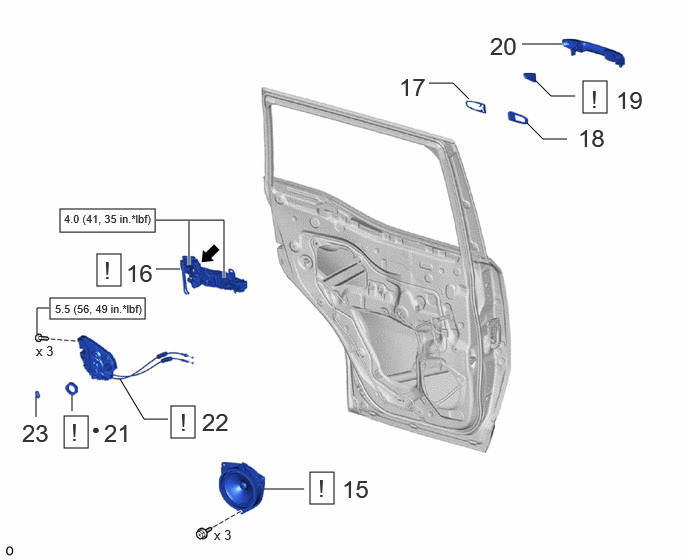

Fig 3: Rear Door Reassembly Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
15	REAR SPEAKER ASSEMBLY	86160B	See step  15	-	-
16	REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH	69204A	See step  16	-	-
17	REAR DOOR REAR OUTSIDE HANDLE PAD	69242G	-	-	-
18	REAR DOOR FRONT OUTSIDE HANDLE PAD	69241G	-	-	-
19	REAR DOOR OUTSIDE HANDLE COVER	69227M	See step  19	-	-
20	REAR DOOR OUTSIDE HANDLE ASSEMBLY LH	69240	-	-	-
21	DOOR LOCK WIRING HARNESS SEAL	69318D	See step  21	-	-
22	REAR DOOR LOCK WITH MOTOR ASSEMBLY LH	69060A	See step  22	-	-
23	REAR DOOR LOCK CHILD PROTECTION COVER LH	67836H	-	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

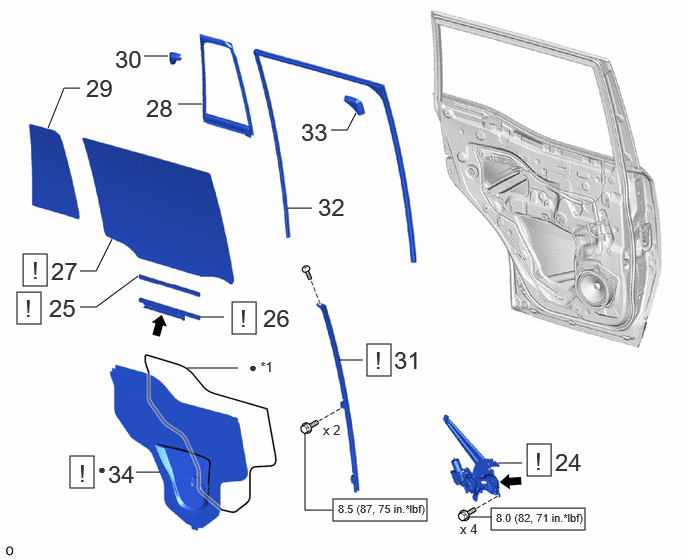

Fig 4: Rear Door Reassembly Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
24	REAR DOOR WINDOW REGULATOR ASSEMBLY	-	See step  24	-	-
25	REAR DOOR GLASS CHANNAL FILLER	69975D	See step  25	-	-
26	REAR DOOR GLASS CHANNEL SUB-ASSEMBLY LH	69906E	See step  26	-	-
27	REAR DOOR GLASS SUB-ASSEMBLY LH	68104	See step  27	-	-
28	REAR DOOR QUARTER WINDOW WEATHERSTRIP LH	68189	-	-	-
29	REAR DOOR QUARTER WINDOW GLASS LH	68124C	-	-	-
30	REAR DOOR NO. 2 FRAME GARNISH LH	67676C	-	-	-
31	REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY LH	67408F	See step  31	-	-
32	REAR DOOR GLASS RUN LH	68152C	-	-
33	REAR DOOR FRAME GARNISH LH	67674A	-	-	-
34	REAR DOOR SERVICE HOLE COVER LH	67842E	See step  34	-	-

*1	BUTYL TAPE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

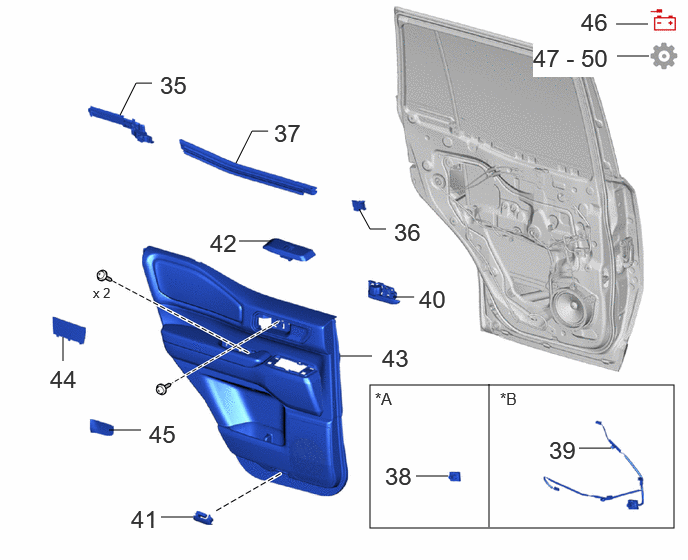

Fig 5: Rear Door Reassembly Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
35	REAR DOOR REAR BELT SEAL LH	68199	-	-	-
36	REAR DOOR NO. 1 VENT SEAL LH	67848A	-	-	-
37	REAR DOOR INNER GLASS WEATHERSTRIP LH	68174A	-	-	-
38	WIRING HARNESS CONNECTOR	-	-	-	-
39	REAR DOOR WIRE LH	82154A	-	-	-
40	REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH	69206C	-	-	-
41	COURTESY LIGHT ASSEMBLY	81230	-	-	-
42	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL LH	-	-	-	-
43	REAR DOOR TRIM BOARD SUB-ASSEMBLY LH	67604	-	-	-
44	REAR DOOR ARMREST COVER SUB-ASSEMBLY LH	74048A	-	-	-
45	REAR DOOR UPPER TRIM COVER LH	67786D	-	-	-
46	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
47	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	See step  47
48	INITIALIZE POWER WINDOW CONTROL SYSTEM	-	-	-	See step  48
49	INSPECT POWER WINDOW OPERATION	-	-	-	See step  49
50	INSPECT POWER DOOR LOCK OPERATION	-	-	-	See step  50
