Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the rear door disassembly/reassembly are shown below.

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

HINT:

• When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
    Front camera system	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [02/2024 - ]

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
    Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
    Power back door system	Fully close the back door by hand. HINT:  Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [02/2024 - ]

• Use the same procedure for the LH side and RH side.
• The procedure below is for the LH side.

COMPONENTS (DISASSEMBLY)

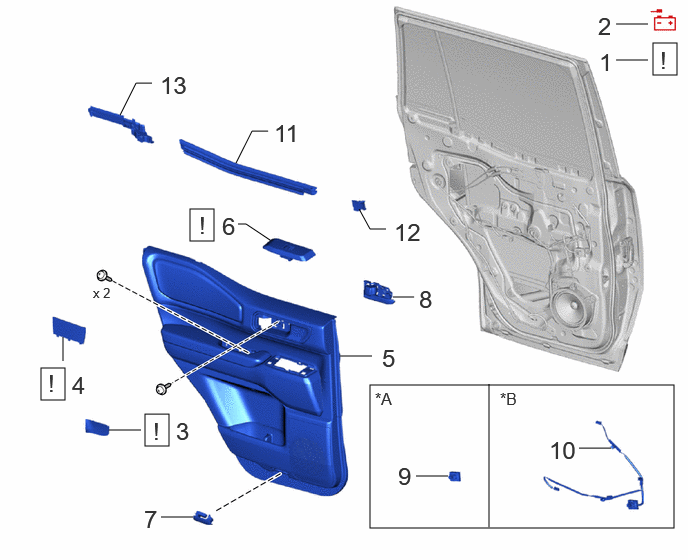

Fig 1: Rear Door Disassembly Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step  1	-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	REAR DOOR UPPER TRIM COVER LH	67786D	See step  3	-	-
4	REAR DOOR ARMREST COVER SUB-ASSEMBLY LH	74048A	See step  4	-	-
5	REAR DOOR TRIM BOARD SUB-ASSEMBLY LH	67604	-	-	-
6	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL LH	-	See step  6	-	-
7	COURTESY LIGHT ASSEMBLY	81230	-	-	-
8	REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH	69206C	-	-	-
9	WIRING HARNESS CONNECTOR	-	-	-	-
10	REAR DOOR WIRE LH	82154A	-	-	-
11	REAR DOOR INNER GLASS WEATHERSTRIP LH	68174A	-	-	-
12	REAR DOOR NO. 1 VENT SEAL LH	67848A	-	-	-
13	REAR DOOR REAR BELT SEAL LH	68199	-	-	-

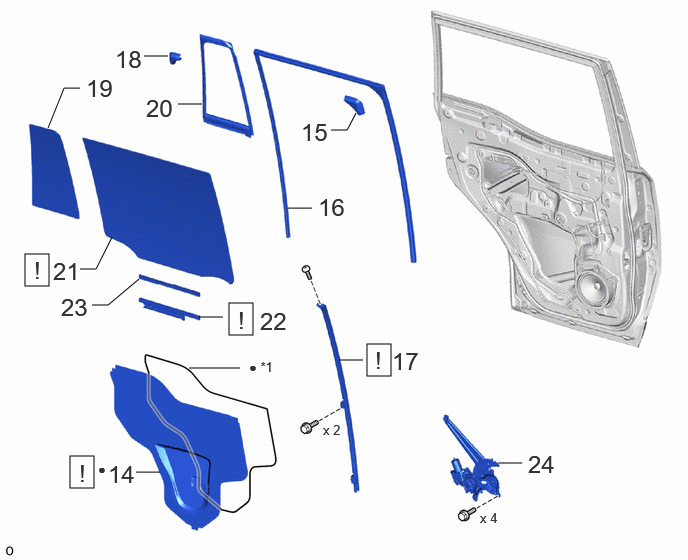

Fig 2: Rear Door Disassembly Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
14	REAR DOOR SERVICE HOLE COVER LH	67842E	See step  14	-	-
15	REAR DOOR FRAME GARNISH LH	67674A	-	-	-
16	REAR DOOR GLASS RUN LH	68152C	-	-	-
17	REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY LH	67408F	See step  17	-	-
18	REAR DOOR NO. 2 FRAME GARNISH LH	67676C	-	-	-
19	REAR DOOR QUARTER WINDOW GLASS LH	68124C	-	-	-
20	REAR DOOR QUARTER WINDOW WEATHERSTRIP LH	68189	-	-	-
21	REAR DOOR GLASS SUB-ASSEMBLY LH	68104	See step  21	-	-
22	REAR DOOR GLASS CHANNEL SUB-ASSEMBLY LH	69906E	See step  22	-	-
23	REAR DOOR GLASS CHANNAL FILLER	69975D	-	-	-
24	REAR DOOR WINDOW REGULATOR ASSEMBLY	-	-	-	-

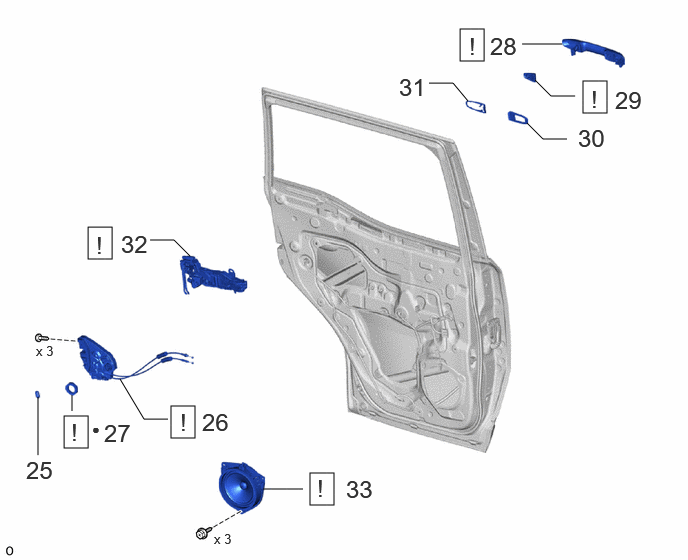

Fig 3: Rear Door Disassembly Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
25	REAR DOOR LOCK CHILD PROTECTION COVER LH	67836H	-	-	-
26	REAR DOOR LOCK WITH MOTOR ASSEMBLY LH	69060A	See step  26	-	-
27	DOOR LOCK WIRING HARNESS SEAL	69318D	See step  27	-	-
28	REAR DOOR OUTSIDE HANDLE ASSEMBLY LH	69240	See step  28	-	-
29	REAR DOOR OUTSIDE HANDLE COVER	69227M	See step  29	-	-
30	REAR DOOR FRONT OUTSIDE HANDLE PAD	69241G	-	-	-
31	REAR DOOR REAR OUTSIDE HANDLE PAD	69242G	-	-	-
32	REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH	69204A	See step  32	-	-
33	REAR SPEAKER ASSEMBLY	86160B	See step  33	-	-

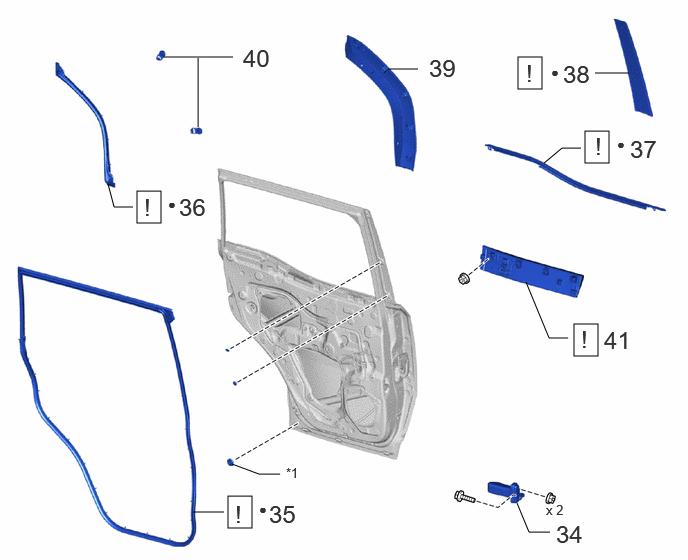

Fig 4: Rear Door Disassembly Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
34	REAR DOOR CHECK ASSEMBLY LH	68640A	-	-	-
35	REAR DOOR WEATHERSTRIP LH	67872	See step  35	-	-
36	REAR DOOR NO. 2 WEATHERSTRIP LH	67888A	See step  36	-	-
37	REAR DOOR BELT MOULDING LH	75722A	See step  37	-	-
38	REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)	75762B	See step  38	-	-
39	OUTSIDE MOULDING SET LH	75062	-	-	-
40	OUTSIDE MOULDING RETAINER	75392H	-	-	-
41	REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH	75078	See step  41	-	-

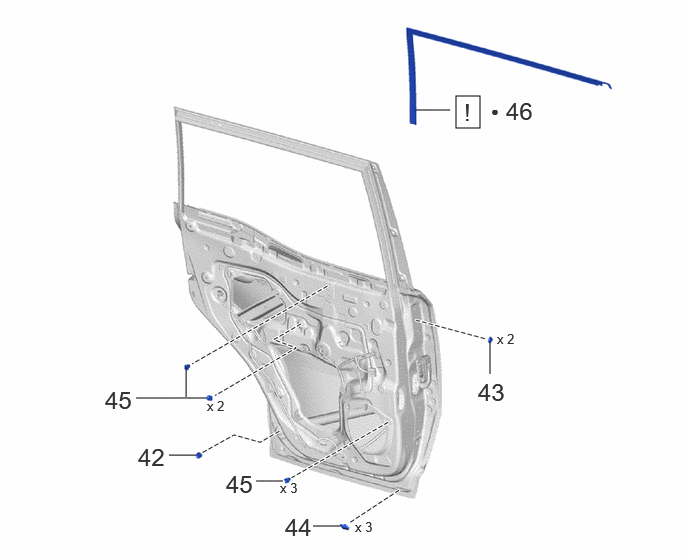

Fig 5: Rear Door Disassembly Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
42	REAR DOOR PANEL CUSHION	67003C	-	-	-
43	HOLE PLUG	-	-	-	-
44	REAR DOOR DUST PROOF SEAL	67837C	-	-	-
45	SCREW GROMMET	-	-	-	-
46	NO. 2 BLACK OUT TAPE LH	75924C	See step  46	-	-
