On-Vehicle Inspection [02/2024 - ]: Procedure
- INSPECT HOOD SUB-ASSEMBLY

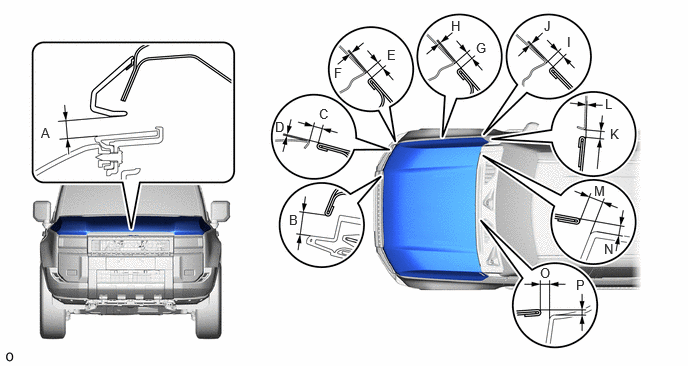

- Check that the clearance measurement of areas "A" to "P" are within the standard ranges.STANDARD CLEARANCE
Area Measurement Area Measurement A 9.8 mm (0.386 in.) B 13.95 mm (0.549 in.) C 3.5 to 6.5 mm (0.138 to 0.256 in.) D -1.3 to 1.7 mm (-0.0512 to 0.0669 in.) E 2.4 to 5.4 mm (0.0945 to 0.2126 in.) F -1.4 to 1.6 mm (-0.0551 to 0.0630 in.) G 2.2 to 5.2 mm (0.0866 to 0.2047 in.) H -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) I 2.2 to 5.2 mm (0.0866 to 0.2047 in.) J -1.4 to 1.6 mm (-0.0551 to 0.0630 in.) K 2.4 to 5.4 mm (0.0945 to 0.2126 in.) L -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) M 6.05 mm (0.238 in.) N 4.35 mm (0.171 in.) O 5.75 mm (0.226 in.) P 2.95 mm (0.116 in.) HINT:
If the result is not as specified, adjust the hood sub-assembly.
Refer to ADJUSTMENT [02/2024 - ]
- Check that the clearance measurement of areas "A" to "P" are within the standard ranges.
