Disassembly [02/2024 - ]: Procedure

  1. REMOVE FRONT HOOD MOULDING ASSEMBLY

    Refer to PROCEDURE - Step 1

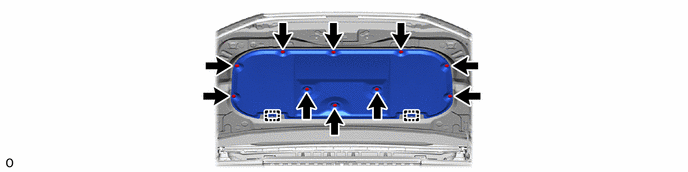

  2. REMOVE HOOD INSULATOR
    1. GTY1224405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

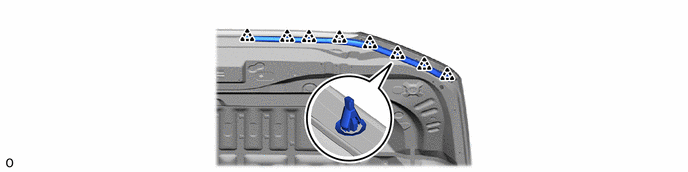

  3. REMOVE NO. 2 HOOD TO FRONT END PANEL SEAL
    1. GTY1226896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 HOOD TO FRONT END PANEL SEAL
    1. Use the same procedure described for the No. 2 hood to front end panel seal.
