Adjustment [02/2024 - ]: Procedure

  1. INSPECT FRONT DOOR

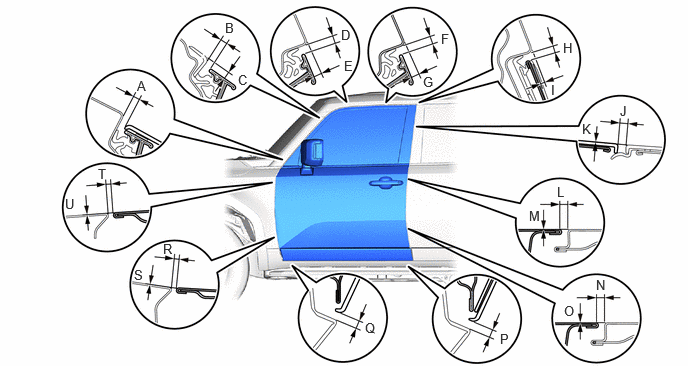

    1. Check that the clearance measurements of areas "A" to "U" are within the standard ranges.
      GTY1223479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE:

      Area Measurement Area Measurement
      A 3.15 to 6.55 mm (0.124 to 0.258 in.) B 3.65 to 7.65 mm (0.144 to 0.301 in.)
      C 4.05 to 8.05 mm (0.159 to 0.317 in.) D 3.9 to 6.9 mm (0.154 to 0.272 in.)
      E 4.1 to 7.1 mm (0.161 to 0.280 in.) F 3.9 to 6.9 mm (0.154 to 0.272 in.)
      G 3.7 to 6.7 mm (0.146 to 0.264 in.) H 4.15 to 7.55 mm (0.163 to 0.297 in.)
      I 0.95 to 4.95 mm (0.037 to 0.195 in.) J 2.5 to 6.5 mm (0.0984 to 0.2559 in.)
      K -2.0 to 2.0 mm (-0.0787 to 0.0787 in.) L 3.0 to 5.4 mm (0.118 to 0.213 in.)
      M -1.2 to 1.2 mm (-0.0472 to 0.0472 in.) N 3.0 to 5.4 mm (0.118 to 0.213 in.)
      O -1.2 to 1.2 mm (-0.0472 to 0.0472 in.) P 3.5 to 8.5 mm (0.138 to 0.335 in.)
      Q 3.5 to 8.5 mm (0.138 to 0.335 in.) R 2.5 to 5.5 mm (0.0984 to 0.2165 in.)
      S -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) T 2.5 to 5.5 mm (0.0984 to 0.2165 in.)
      U -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) - -
  2. PRECAUTION
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    Refer to PRECAUTION [02/2024 - ]

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [02/2024 - ]

  4. ADJUST FRONT DOOR LH

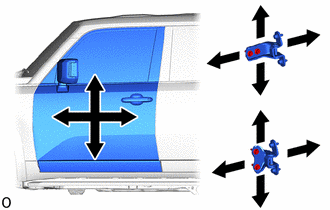

    1. Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.
      • SST: 09812-00010
      GTY1224243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the bolt hinge bolts after the adjustment.

      Torque: 26.0 N.m (265 kgf/cm, 19 ft.lbf)

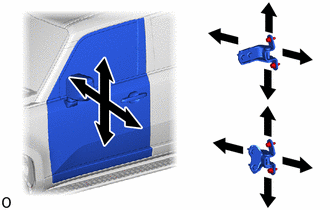

    3. Loosen the 4 hinge bolts on the door and adjust the door position.
      GTY1224242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the 4 hinge bolts on the door after adjustment.

      Torque: 21.0 N.m (214 kgf/cm, 15 ft.lbf)

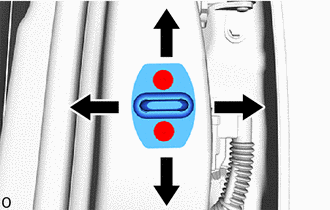

    5. GTY1219567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

    6. Using a brass bar and a hammer, hit the striker to adjust its position.
    7. Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustments.

      Torque: 23.0 N.m (235 kgf/cm, 17 ft.lbf)

  5. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to INSTALLATION [02/2024 - ]

  6. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [02/2024 - ]

  7. INSPECT SRS WARNING LIGHT

    Refer to OPERATION CHECK [02/2024 - ]
