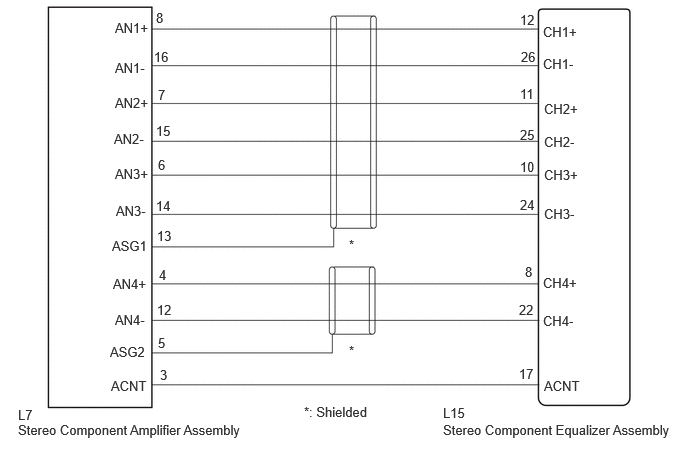

Input / Output Signal Circuit [02/2024 - ]: Wiring Diagram

GTY1224170

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
