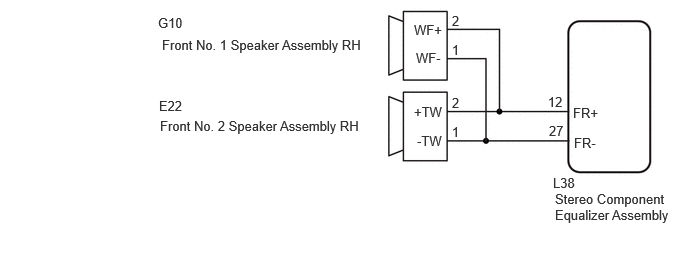

DTC B1AAF-71: Front Door Right Speaker Circuit Actuator Stuck [02/2024 - ]: Wiring Diagram

GTY1222819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
