Removal [02/2024 - ]: Procedure

  1. REMOVE REAR SPOILER SUB-ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE CENTER STOP LIGHT ASSEMBLY

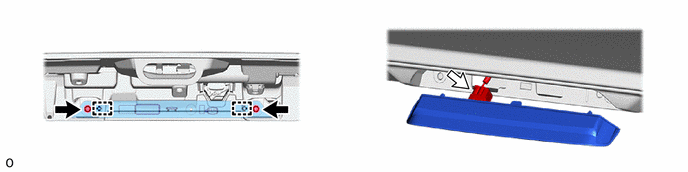

    1. GTY1220817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Connector
