Parts Location [02/2024 - ]: Illustration
| *A | w/ Memory Seat | - | - |

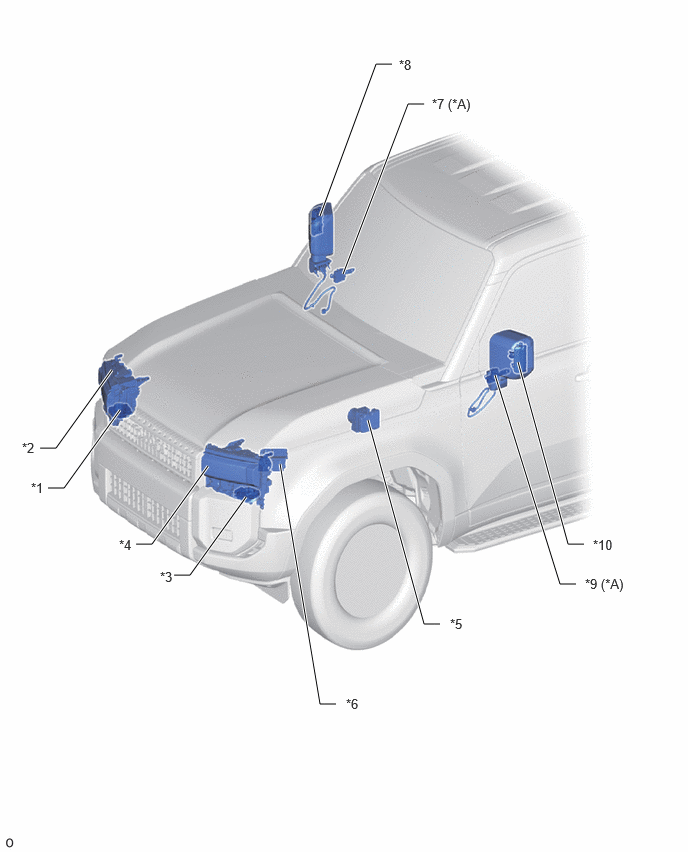

| *1 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH | *2 | HEADLIGHT ASSEMBLY RH - HEADLIGHT FRONT TURN SIGNAL LIGHT LED (for RH Side) (for Single Beam Headlight) |
| *3 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH | *4 | HEADLIGHT ASSEMBLY LH - HEADLIGHT FRONT TURN SIGNAL LIGHT LED (for LH Side) (for Single Beam Headlight) |
| *5 | BRAKE ACTUATOR ASSEMBLY (NO. 2 SKID CONTROL ECU) | *6 | ECM |
| *7 | OUTER MIRROR CONTROL ECU ASSEMBLY RH | *8 | OUTER REAR VIEW MIRROR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *10 | OUTER REAR VIEW MIRROR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *A | for 7 Inch Multi-information Display Type | - | - |

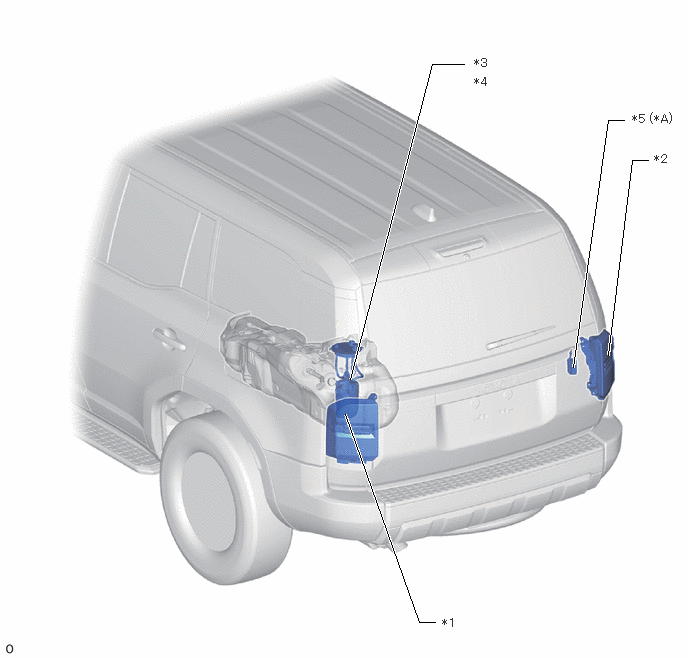

| *1 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH |
*2 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
| *3 | FUEL SUCTION PLATE SUB-ASSEMBLY | *4 | FUEL SENDER GAUGE ASSEMBLY |
| *5 | TOWING CONVERTER RELAY | - | - |

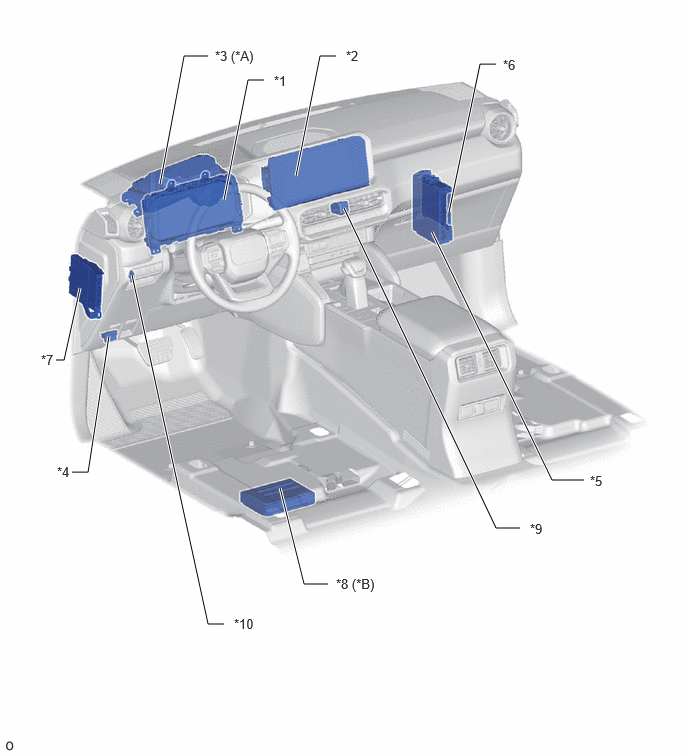

| *A | w/ Headup Display | *B | except 6 Speakers |
| *1 | COMBINATION METER ASSEMBLY | *2 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *3 | METER MIRROR SUB-ASSEMBLY | *4 | DLC3 |
| *5 | POWER DISTRIBUTION BOX ASSEMBLY - METER-IGR FUSE - +BA NO. 1 FUSE - ECU-DCC NO. 2 FUSE - ECU-IGR NO. 3 FUSE |
*6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *9 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *10 | STOP LIGHT SWITCH ASSEMBLY |

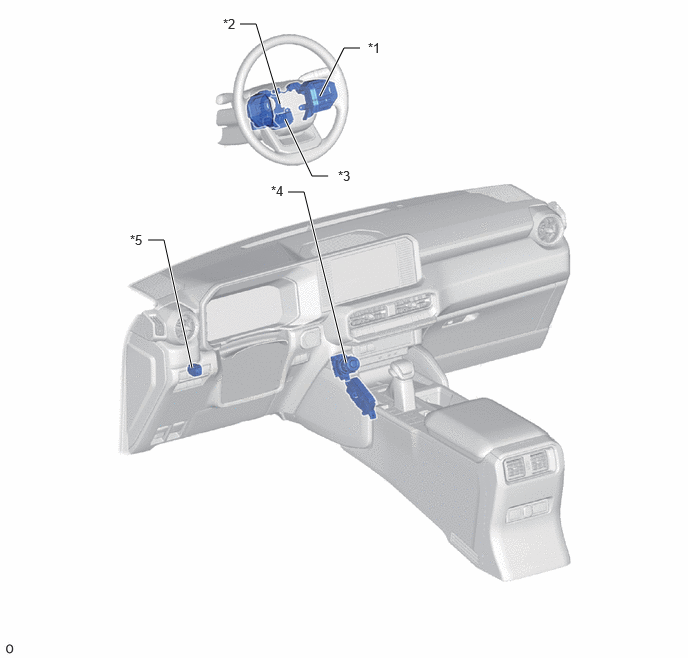

| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *3 | MULTIPLEX NETWORK STEERING ECU | *4 | INTEGRATION CONTROL AND PANEL SUB-ASSEMBLY |
| *5 | LIGHT CONTROL RHEOSTAT | - | - |
