COMPONENTS (DISASSEMBLY)

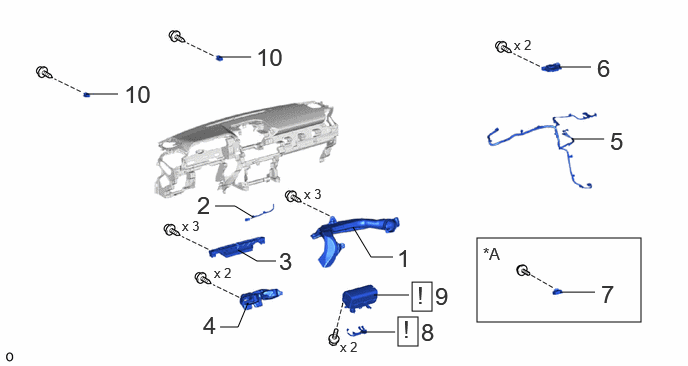

Fig 1: Instrument Panel Safety Pad Disassembly Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	NO. 2 HEATER TO REGISTER DUCT	55844	-	-	-
2	NO. 2 INSTRUMENT PANEL WIRE	82142	-	-	-
3	DEFROSTER NOZZLE ASSEMBLY	55950G	-	-	-
4	NO. 3 HEATER TO REGISTER DUCT	55845A	-	-	-
5	ANTENNA CORD SUB-ASSEMBLY	86101	-	-	-
6	NAVIGATION ANTENNA ASSEMBLY WITH BRACKET	-	-	-	-
7	ANTENNA DIVIDER	86681B	-	-	-
8	NO. 2 INSTRUMENT PANEL WIRE	82142A	See step 8	-	-
9	INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY	73960A	See step 9	-	-
10	NO. 1 INSTRUMENT PANEL PIN	55328	-	-	-

w/ Antenna Divider

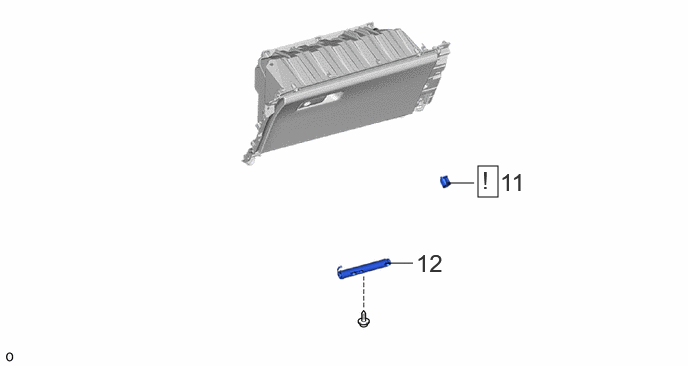

Fig 2: Instrument Panel Safety Pad Disassembly Components (2 Of 2)

Procedure		Part Name Code
11	GLOVE COMPARTMENT LOCK CYLINDER	69056A	See step 11	-	-
12	GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY	55054	-	-	-
