Installation [02/2024 - ]: Procedure

  1. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
  2. INSTALL NO. 2 INSTRUMENT PANEL WIRE

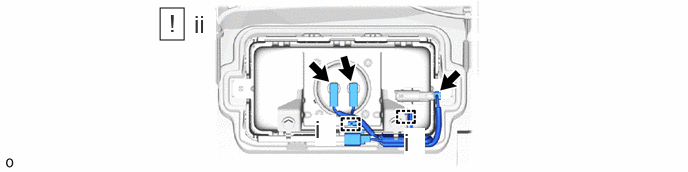

    1. GTY1225381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Attach the clamp to install the No. 2 instrument panel wire.
      2. Connect the 3 airbag connectors.
        NOTE:
        • When connecting any airbag connector, take care not to damage the airbag wire harness.
        • Make sure the lock button is securely locked.
        • Be sure to connect the connectors to each corresponding color.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector:

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [02/2024 - ]

  3. INSTALL DEFROSTER NOZZLE ASSEMBLY
  4. INSTALL NO. 3 HEATER TO REGISTER DUCT
  5. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    Refer to INSTALLATION [02/2024 - ]

  6. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [02/2024 - ]
