  1. REMOVE WATER PUMP AND CRANKSHAFT PULLEY V BELT

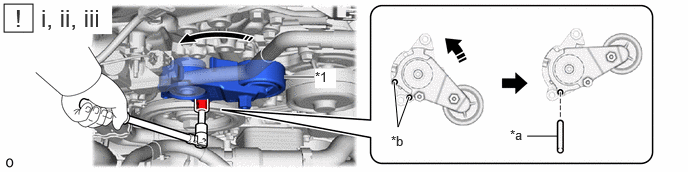

    1. GTY1222128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 V-ribbed Belt Tensioner Assembly - -
      *a 5 mm Hexagon Wrench *b Hole
      Turn in this Direction - -
      1. Release the water pump and crankshaft pulley V belt tension by turning the V-ribbed belt tensioner assembly clockwise.
      2. Rotate the V-ribbed belt tensioner assembly clockwise to align the holes and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly in place.
      3. Remove the water pump and crankshaft pulley V belt.
