Removal [02/2024 - ]: Procedure

  1. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Refer to REMOVAL [02/2024 - ]

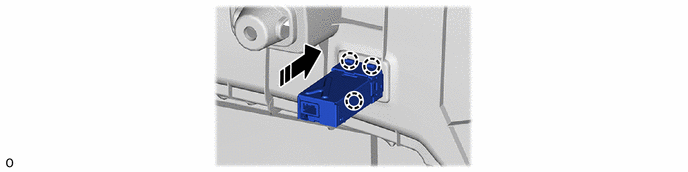

  2. REMOVE NO. 3 USB CHARGER SOCKET (w/ USB Charger)
    1. GTY1218224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction - -

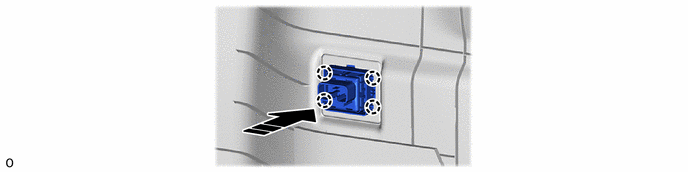

  3. REMOVE POWER OUTLET SOCKET BEZEL (w/ Voltage Inverter)

    HINT:

    The illustrations are representative examples, and details may differ.

    1. GTY1211662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction - -
  4. REMOVE POWER OUTLET SOCKET (w/ Voltage Inverter)
    1. GTY1217240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction - -

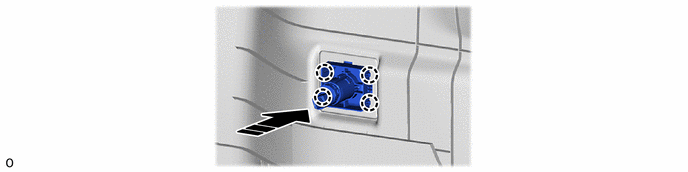

  5. REMOVE POWER OUTLET SOCKET BEZEL (w/o Voltage Inverter)
    1. GTY1221758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction - -
  6. REMOVE POWER OUTLET SOCKET (w/o Voltage Inverter)
    1. GTY1221733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the power outlet socket.
  7. REMOVE POWER OUTLET SOCKET COVER (w/o Voltage Inverter)
    1. GTY1221969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction - -
