Removal [02/2024 - ]: Procedure

  1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT UPPER ARMREST BASE PANEL LH

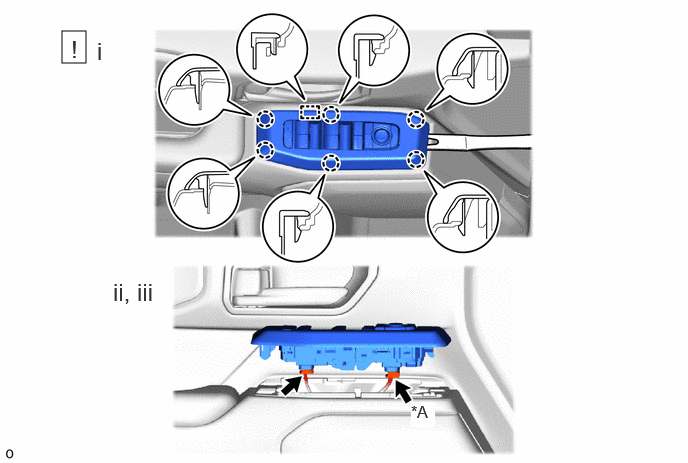

    1. GTY1220429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Seat Position Memory - -
      1. Using moulding remover B, detach the claw and guide.
      2. w/ Seat Position Memory:

        1. Disconnect the connector and remove the multiplex network master switch assembly with front upper armrest base panel LH.

      3. w/o Seat Position Memory:

        1. Disconnect the 2 connectors and remove the multiplex network master switch assembly with front upper armrest base panel LH.

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
    1. GTY1222089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and remove the multiplex network master switch assembly from the front upper armrest base panel LH.

        HINT:

        Tape the thin-bladed screwdriver tip before use.
