Removal [02/2024 - ]: Procedure

  1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT UPPER ARMREST BASE PANEL RH

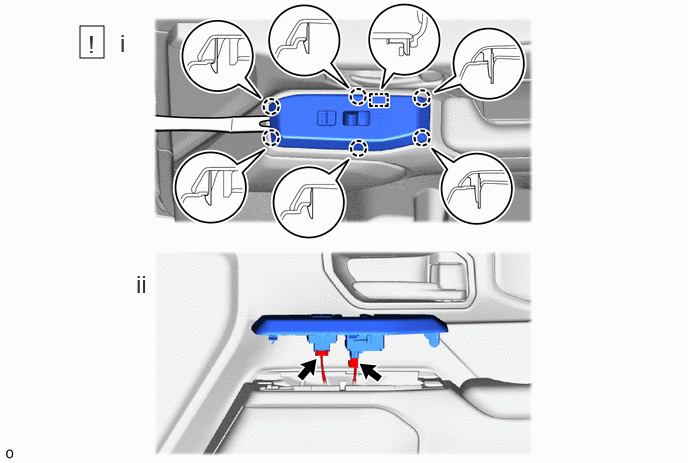

    1. GTY1220119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using moulding remover B, detach the claw and guide.
      2. Disconnect the 2 connectors and remove the power window regulator switch assembly with front upper armrest base panel RH.
  2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. GTY1222752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw and remove the power window regulator switch assembly from the front upper armrest base panel RH.

        HINT:

        Tape the thin-bladed screwdriver tip before use.
