Disassembly [02/2024 - ]: Procedure

REMOVE BODY OUTSIDE MOULDING PAD

NOTE:

When removing the body outside moulding pad, if the double-sided tape is difficult to remove, heat the adhesive of the body outside moulding pad using a heat light.

Standard Value

Part	Temperature
Body Outside Moulding Pad	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

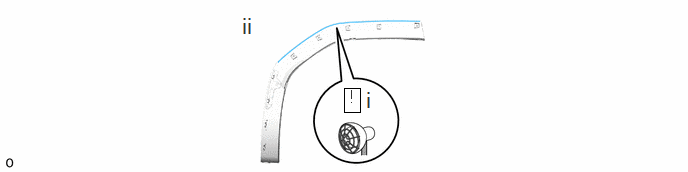

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the body outside moulding pad excessively.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Heat the adhesive of the body outside moulding pad using a heat light.
Remove the body outside moulding pad.

REMOVE REAR DOOR NO. 1 MOULDING PAD

NOTE:

When removing the rear door No. 1 moulding pad, if the double-sided tape is difficult to remove, heat the adhesive of the rear door No. 1 moulding pad using a heat light.

Standard Value

Part	Temperature
Rear Door No. 1 Moulding Pad	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

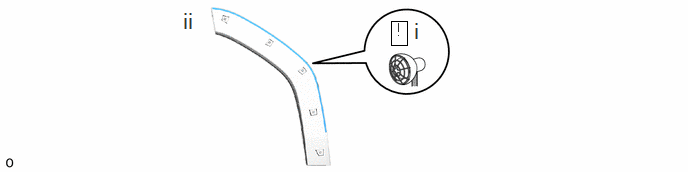

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the rear door No. 1 moulding pad excessively.

Heat the adhesive of the rear door No. 1 moulding pad using a heat light.
Remove the rear door No. 1 moulding pad.
