Removal [02/2024 - ]: Procedure

  1. REMOVE STEP SUB-ASSEMBLY LH

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE FRONT FENDER MOULDING OUTSIDE LH

    Refer to REMOVAL [02/2024 - ]

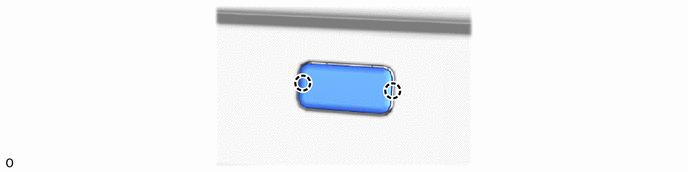

  3. REMOVE ROCKER PANEL MOULDING COVER LH
    1. GTY1212595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

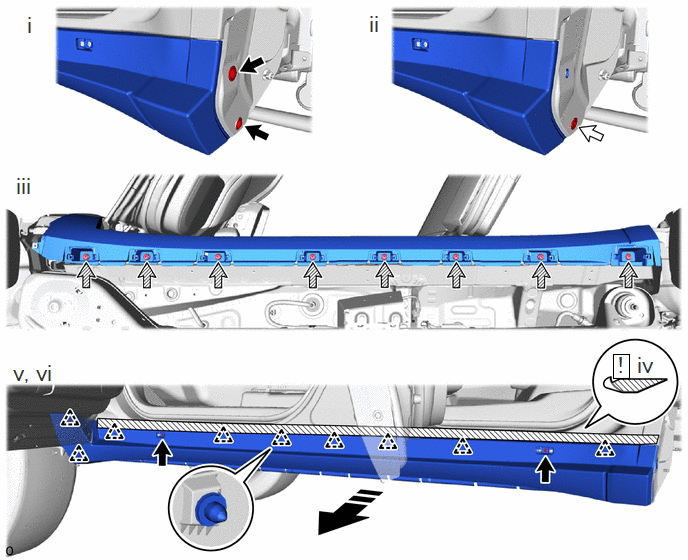

  4. REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY LH
    1. GTY1227173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Screw
      Grommet Clip
      1. Remove the 2 screws.
      2. Remove the grommet.
      3. Remove the 8 clips.
      4. Put protective tape around the body rocker panel moulding assembly LH.
      5. Remove the 2 screws.
      6. Detach the clip remove the body rocker panel moulding assembly LH as shown in the illustration.
