Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear door window frame moulding LH (center pillar side) removal/installation are shown below.

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

HINT:

• When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
  • Learning completes when vehicle is driven

    Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
    Front camera system	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [02/2024 - ]

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
    Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
    Power back door system	Fully close the back door by hand. HINT:  Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [02/2024 - ]

• Use the same procedure for the RH and LH sides.
• Use the same procedure described for the LH side.

COMPONENTS (REMOVAL)

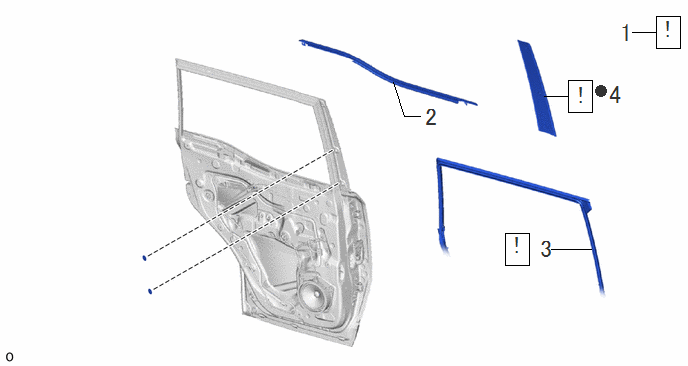

Fig 1: Rear Door Window Frame Moulding Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step  1	-	-
2	REAR DOOR BELT MOULDING LH	75722A	-	-	-
3	REAR DOOR WEATHERSTRIP LH	67872	See step  3	-	-
4	REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)	75762B	See step  4	-	-
