Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear door belt moulding assembly LH removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Rear door glass sub-assembly LH* Rear door glass sub-assembly RH* Rear door glass run LH* Rear door glass run RH*	Initialize power window control system	Auto up and down function Remote control function Key-linked function Wireless transmitter-linked function Key-off operation function Jam protection function Catch protection function Window open warning function	Refer to REGISTRATION [02/2024 - ]

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
Front camera system	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [02/2024 - ]

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [02/2024 - ]

Use the same procedure for the RH and LH sides.
Use the same procedure described for the LH side.

COMPONENTS (REMOVAL)

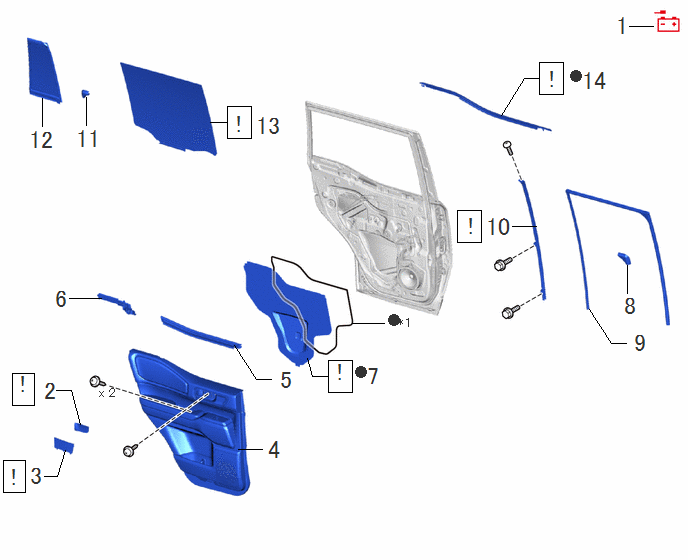

Fig 1: Rear Door Belt Moulding Removal Components

Procedure		Part Name Code
1	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
2	REAR DOOR UPPER TRIM COVER LH	67786D	See step 2	-	-
3	REAR DOOR ARMREST COVER SUB-ASSEMBLY LH	74048A	See step 3	-	-
4	REAR DOOR TRIM BOARD SUB-ASSEMBLY LH	67604	-	-	-
5	REAR DOOR INNER GLASS WEATHERSTRIP LH	68174A	-	-	-
6	REAR DOOR REAR BELT SEAL LH	68199	-	-	-
7	REAR DOOR SERVICE HOLE COVER LH	67842E	See step 7	-	-
8	REAR DOOR FRAME GARNISH LH	67674A	-	-	-
9	REAR DOOR GLASS RUN LH	68152C	-	-	-
10	REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY LH	67408F	See step 10	-	-
11	REAR DOOR NO. 2 FRAME GARNISH LH	67676C	-	-	-
12	REAR DOOR QUARTER WINDOW GLASS LH	68124C	-	-	-
13	REAR DOOR GLASS SUB-ASSEMBLY LH	68104	See step 13	-	-
14	REAR DOOR BELT MOULDING LH	75722A	See step 14	-	-

*1	BUTYL TAPE	-	-
•	Non-reusable part	-	-
