Removal [02/2024 - ]: Procedure

  1. REMOVE FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH

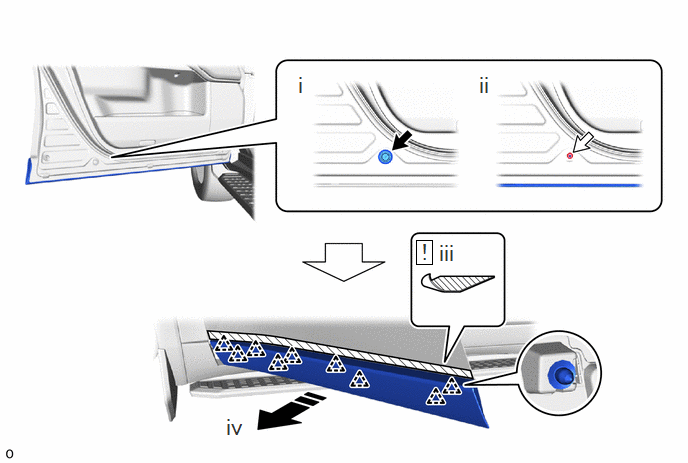

    1. GTY1221951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Hole Plug
      Nut - -
      1. Remove the hole plug.
      2. Remove the nut.
      3. Apply protective tape around the front door lower outside moulding sub-assembly LH.
      4. Detach the clip and remove the front door lower outside moulding sub-assembly LH as shown in the illustration.
