Reassembly [02/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    When installing parts with double-sided tape, heat the portion with adhesive and the application surface of the parts and with a heat light.

    Standard Value

    Part Temperature
    Metal parts 40 to 60°C (104 to 140°F)
    Resin parts 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the part excessively.

  2. INSTALL HOOD MOULDING SPACER

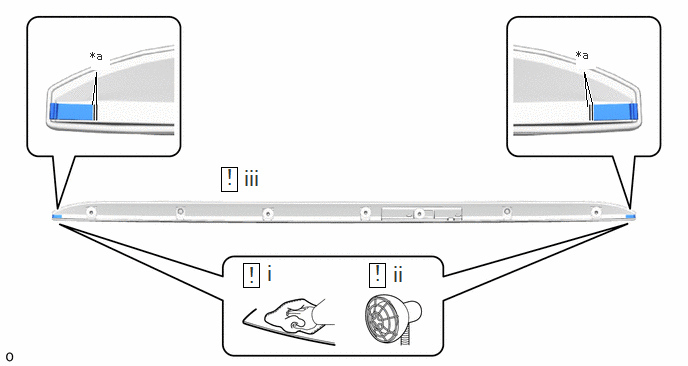

    1. GTY1219971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line - -
      1. Clean the surface of the front hood moulding assembly.

        1. Using a heat light, heat the front hood moulding assembly surface.

        2. Remove any remaining double-sided tape from the front hood moulding assembly.

        3. Wipe off any tape adhesive residue with cleaner.

        NOTE:
        • Installing the hood moulding spacer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
        • Clean the surface even when using a new part.
      2. Using a heat light, heat the front hood moulding assembly and a new hood moulding spacer.
      3. Install the hood moulding spacer in the position shown in the illustration.
        NOTE:

        The application strength of the hood moulding spacer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

        HINT:

        Apply pressure so that it does not lift up from the front hood moulding assembly.

  3. INSTALL FRONT HOOD MOULDING PAD

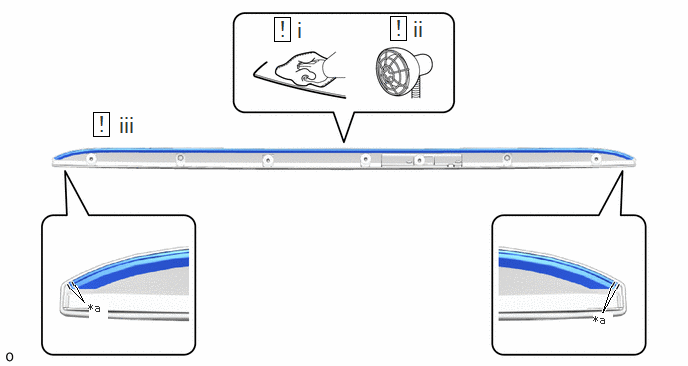

    1. GTY1226202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line - -
      1. Clean the surface of the front hood moulding assembly.

        1. Using a heat light, heat the front hood moulding assembly surface.

        2. Remove any remaining double-sided tape from the front hood moulding assembly.

        3. Wipe off any tape adhesive residue with cleaner.

        NOTE:
        • Installing the front hood moulding pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
        • Clean the surface even when using a new part.
      2. Using a heat light, heat the front hood moulding assembly and a new front hood moulding pad.
      3. Install the front hood moulding pad in the position shown in the illustration.
        NOTE:

        The application strength of the front hood moulding pad will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

        HINT:

        Apply pressure so that it does not lift up from the front hood moulding assembly.
