Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

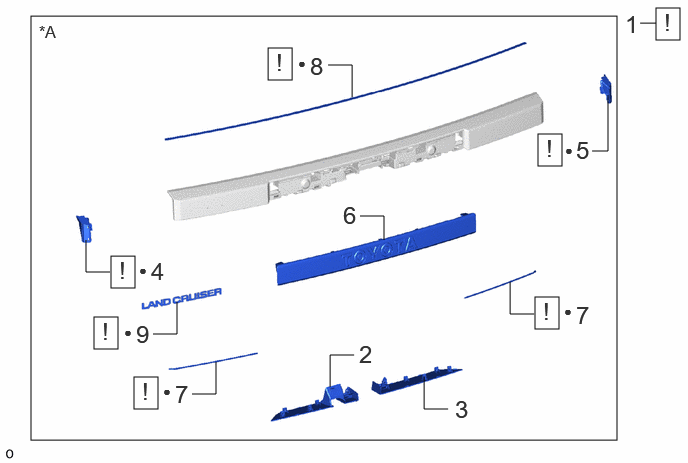

Fig 1: Back Door Outside Garnish Reassembly Components (1 Of 2)

GTY1225470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	LOWER BACK DOOR OUTSIDE GARNISH MOULDING LH	76816B	-	-	-
3	LOWER BACK DOOR OUTSIDE GARNISH MOULDING RH	76815C	-	-	-
4	BACK DOOR GARNISH SIDE PROTECTOR LH	76822D	See step 4	-	-
5	BACK DOOR GARNISH SIDE PROTECTOR RH	76821C	See step 4	-	-
6	NO. 2 BACK DOOR OUTSIDE GARNISH	76812A	-	-	-
7	BACK DOOR OUTSIDE GARNISH PROTECTOR	76825C	See step 7	-	-
8	BACK DOOR OUTSIDE GARNISH PROTECTOR	76825	See step 8	-	-
9	NO. 1 REAR NAME PLATE	75441	See step 9	-	-

*A	for Type B	-	-
•	Non-reusable part	-	-

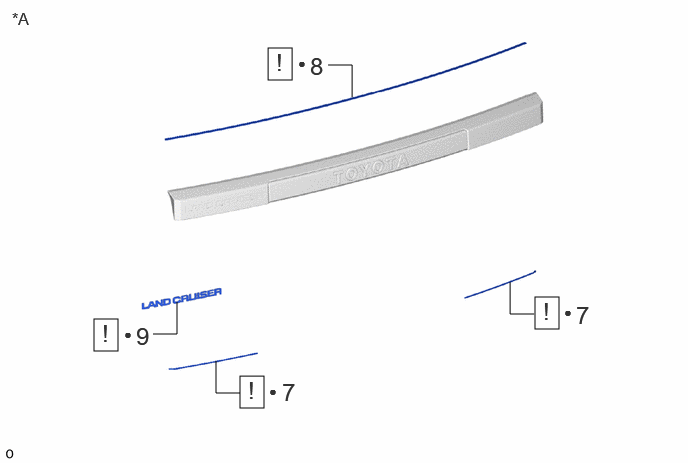

Fig 2: Back Door Outside Garnish Reassembly Components (2 Of 2)

GTY1220062

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
7	BACK DOOR OUTSIDE GARNISH PROTECTOR	76825C	See step 7	-	-
8	BACK DOOR OUTSIDE GARNISH PROTECTOR	76825	See step 8	-	-
9	NO. 1 REAR NAME PLATE	75441	See step 9	-	-

*A	for Type A	-	-
•	Non-reusable part	-	-
