Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read the precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [02/2024 - ]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE ACTIVE NOISE CONTROL MICROPHONE

    HINT:

    The illustrations are representative examples, and details may differ.

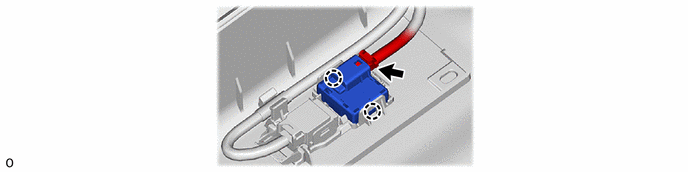

    1. GTY1224093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Use the same procedure described for the other active noise control microphones.
