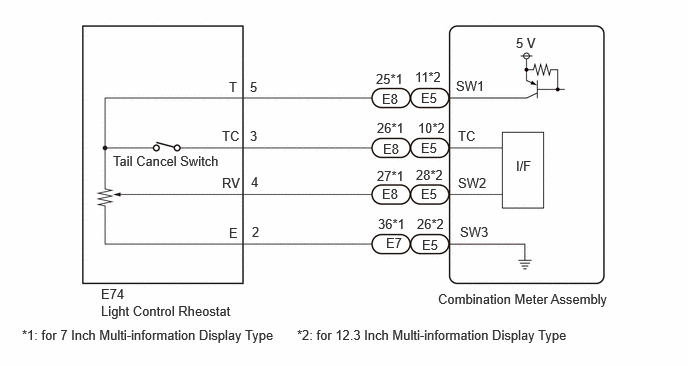

Operating Light Control Rheostat does not Change Light Brightness [02/2024 - ]: Wiring Diagram

GTY1255044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
