Removal [02/2024 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 7

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 9

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER

    Refer to PROCEDURE - Step 11

  4. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 13

  5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  6. REMOVE LIGHT CONTROL RHEOSTAT

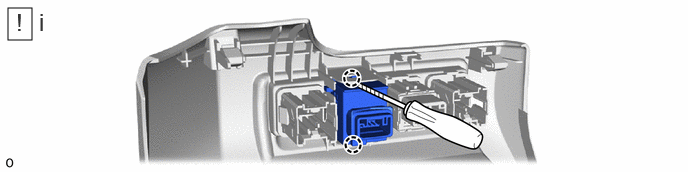

    1. GTY1222410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw guide and remove the light control rheostat.

        HINT:

        Tape the thin-bladed screwdriver tip before use.
