Caution / Notice / Hint

HINT:

A bolt without a torque specification is shown in the standard bolt chart.

Refer to SPECIFIED TORQUE FOR STANDARD BOLTS [02/2024 - ]

COMPONENTS (INSTALLATION)

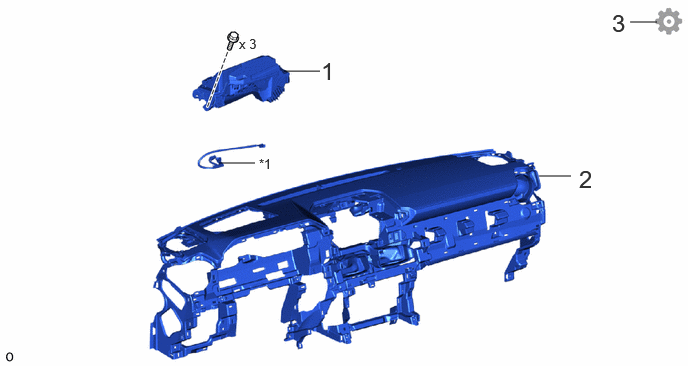

Fig 1: Headup Display Installation Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	METER MIRROR SUB-ASSEMBLY	83108	See step  1	-	-
2	INSTRUMENT PANEL SAFETY PAD ASSEMBLY	-	-	-	-
3	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	See step  3
