Caution / Notice / Hint
COMPONENTS (DISASSEMBLY)

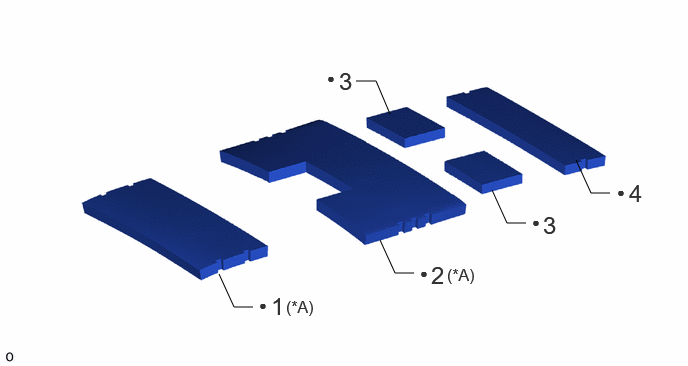

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 1 ROOF SILENCER PAD | 63341 | - | - | - |
| 2 | NO. 2 ROOF SILENCER PAD | 63342 | - | - | - |
| 3 | NO. 3 ROOF SILENCER PAD | 63343 | - | - | - |
| 4 | NO. 4 ROOF SILENCER PAD | 63344 | - | - | - |
| *A | for Normal Roof | - | - |
| • | Non-reusable part | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 5 | TELEPHONE MICROPHONE ASSEMBLY | 86730A | - | - | - |
| 6 | ACTIVE NOISE CONTROL MICROPHONE | 86734D | - | - | - |
| 7 | MICROPHONE CASE | 86255F | - | - | - |
| 8 | ROOF HEADLINING HOLDER COVER | 63388A | - | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 9 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | 86101J | - | - | - |
| 10 | WASHER HOSE | - | - | - | - |
| 11 | NO. 1 ROOF WIRE | 82171 | See step 11 | - | - |
| *A | for Moon Roof | *B | for Normal Roof |

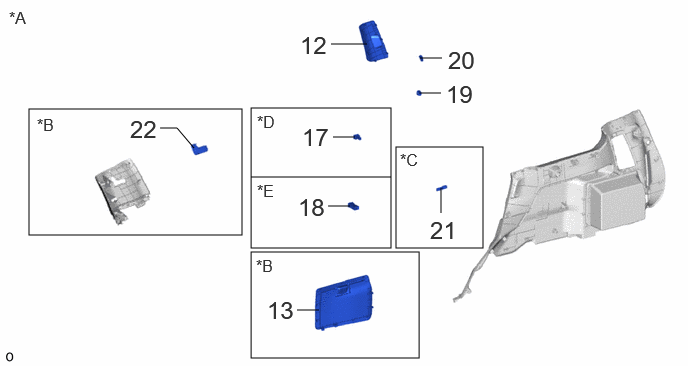

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 12 | QUARTER TRIM JACK COVER | 64766B | - | - | - |
| 13 | QUARTER TRIM COVER LH | 62667 | - | - | - |
| 17 | SPARE SWITCH HOLE COVER | 55539Y | - | - | - |
| 18 | NO. 3 USB CHARGER SOCKET | 85532D | - | - | - |
| 19 | QUARTER TRIM COVER RH | 62521B | - | - | - |
| 20 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | 81330 | - | - | - |
| 21 | REAR NO. 2 SEAT SHOULDER BELT HANGER | 73371H | - | - | - |
| 22 | ROOF SIDE INNER GARNISH CAP LH | 62477A | - | - | - |
| *A | for LH Side | *B | w/o Rear No. 2 Seat |
| *C | w/ Rear No. 2 Seat | *D | w/o USB Charger |
| *E | w/ USB Charger | - | - |

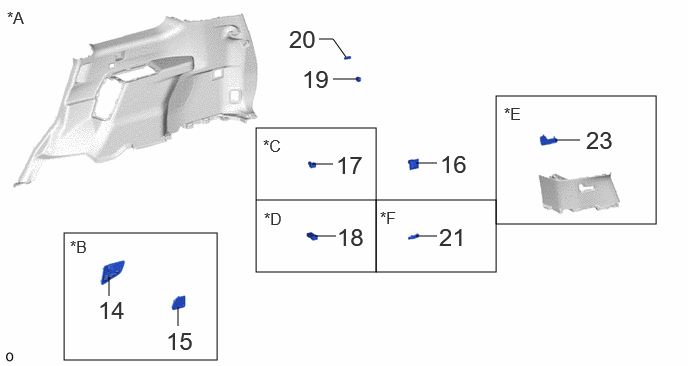

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 14 | FRONT QUARTER TRIM BASE COVER RH | 62633D | - | - | - |
| 15 | REAR QUARTER TRIM BASE COVER RH | 62635B | - | - | - |
| 16 | POWER OUTLET SOCKET BEZEL | 85536 | - | - | - |
| 17 | SPARE SWITCH HOLE COVER | 55539Y | - | - | - |
| 18 | NO. 3 USB CHARGER SOCKET | 85532D | - | - | - |
| 19 | QUARTER TRIM COVER RH | 62521B | - | - | - |
| 20 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | 81330 | - | - | - |
| 21 | REAR NO. 2 SEAT SHOULDER BELT HANGER | 73371H | - | - | - |
| 23 | ROOF SIDE INNER GARNISH CAP RH | 62476A | - | - | - |
| *A | for RH Side | *B | w/ Rear Air Conditioning Sysrm |
| *C | w/o USB Charger | *D | w/ USB Charger |
| *E | w/o Rear No. 2 Seat | *F | w/ Rear No. 2 Seat |
