Removal [02/2024 - ]: Procedure

REMOVE FRONT DOOR SCUFF PLATE LH
See step 7
REMOVE COWL SIDE TRIM BOARD LH
See step 9
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER (for Driver Side)
See step 11
REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER (for Front Passenger Side)
See step 12

REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

REMOVE FRONT FLOOR CARPET ASSEMBLY

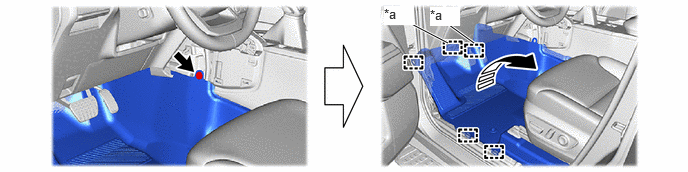

for Driver Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Fastener	-	-
	Remove in this Direction	-	-

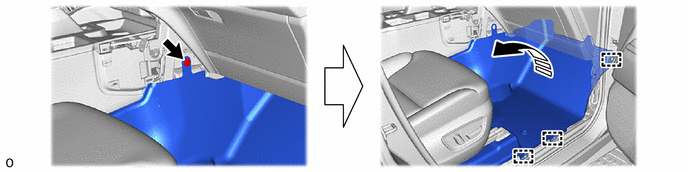

for Passenger Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE MAT SET UPPER PLATE

NOTE:

Pull it forcibly and do not deform the mat set plate mounting holes of the front floor carpet assembly.
Do not remove the reinforcements on the back of the mat set plate mounting holes of the front floor carpet assembly.
If the mat set plate mounting holes of the front floor carpet assembly are damaged or deformed, replace the front floor carpet assembly.

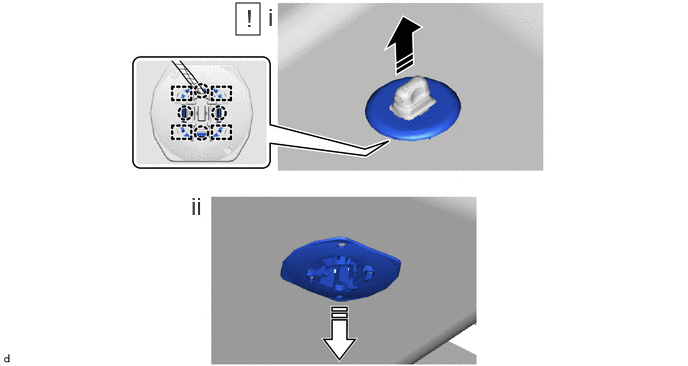

Remove in this Direction (1)

Remove in this Direction (2)

Using a screwdriver with its tip wrapped in protective tape, detach the claw and guide to remove the mat set upper plate from the mat set lower plate and front floor carpet assembly as shown in the illustration.
Remove the mat set lower plate as shown in the illustration.
