Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during instrument panel safety pad assembly removal/installation are shown below.
HINT:
- When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front camera system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [02/2024 - ] - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. - Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [02/2024 - ]
- Learning completes when vehicle is driven

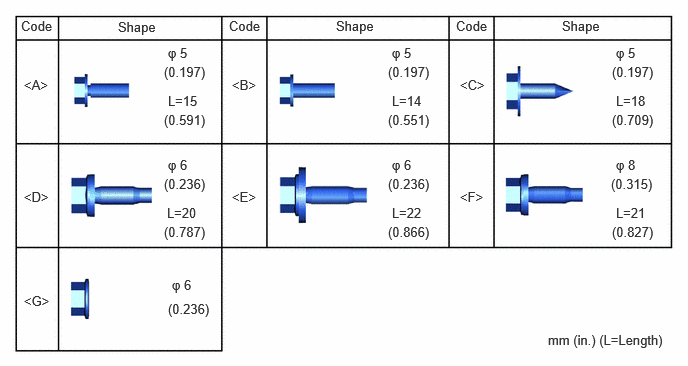

- All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabetical codes in the table.

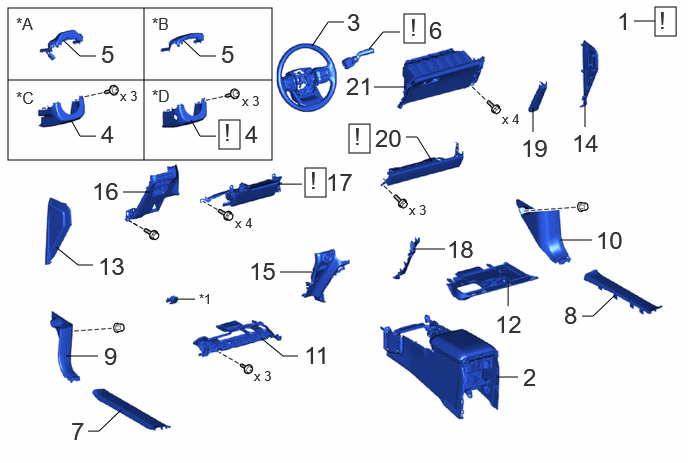

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | FRONT CONSOLE BOX | - | - | - | - |
| 3 | STEERING WHEEL ASSEMBLY | 45100 | - | - | - |
| 4 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY | 45024 | See step 4 | - | - |
| 5 | UPPER STEERING COLUMN COVER | 45286B | - | - | - |
| 6 | WINDSHIELD WIPER SWITCH ASSEMBLY | 84650 | See step 6 | - | - |
| 7 | FRONT DOOR SCUFF PLATE LH | 67914B | - | - | - |
| 8 | FRONT DOOR SCUFF PLATE RH | 67913B | - | - | - |
| 9 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 10 | COWL SIDE TRIM BOARD RH | 62111C | - | - | - |
| 11 | NO. 1 INSTRUMENT PANEL UNDER COVER | 55641 | - | - | - |
| 12 | NO. 2 INSTRUMENT PANEL UNDER COVER | - | - | - | - |
| 13 | INSTRUMENT SIDE PANEL LH | 55318C | - | - | - |
| 14 | INSTRUMENT SIDE PANEL RH | 55317A | - | - | - |
| 15 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 16 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | 55045 | - | - | - |
| 17 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | 73900 | See step 17 | - | - |
| 18 | LOWER INSTRUMENT PANEL LH | 55313 | - | - | - |
| 19 | LOWER INSTRUMENT PANEL RH | 55312B | - | - | - |
| 20 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY | 73990 | See step 20 | - | - |
| 21 | GLOVE COMPARTMENT DOOR ASSEMBLY | 55550 | - | - | - |
| *A | w/ Driver Monitor Camera | *B | w/o Driver Monitor Camera |
| *C | for Manual Tilt and Manual Telescopic Steering Column | *D | for Power Tilt and Power Telescopic Steering Column |
| *1 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | - | - |

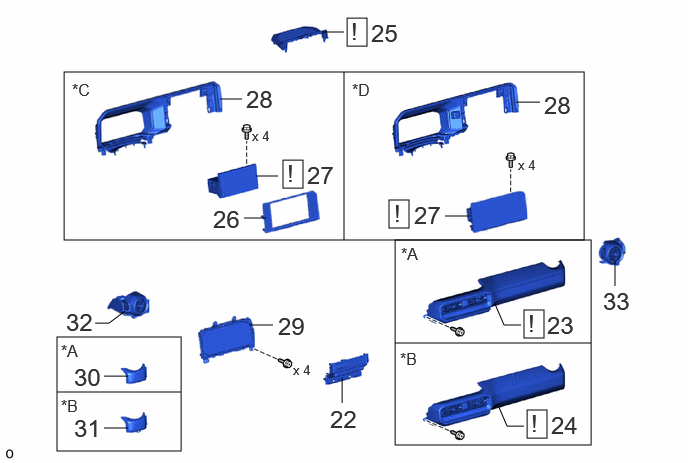

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 22 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | 55405B | - | - | - |
| 23 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | 55011A | See step 23 | - | - |
| 24 | INSTRUMENT PANEL ORNAMENT | 55461A | See step 23 | - | - |
| 25 | UPPER INSTRUMENT CLUSTER FINISH PANEL | 55421B | - | - | - |
| 26 | CENTER INSTRUMENT CLUSTER FINISH PANEL | 55412D | - | - | - |
| 27 | RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET | - | See step 27 | - | - |
| 28 | CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | 55420A | - | - | - |
| 29 | COMBINATION METER ASSEMBLY | 83100 | - | - | - |
| 30 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | 55012A | - | - | - |
| 31 | INSTRUMENT CLUSTER FINISH PANEL ORNAMENT | 55471A | - | - | - |
| 32 | NO. 1 SIDE DEFROSTER NOZZLE | 55961B | - | - | - |
| 33 | NO. 2 SIDE DEFROSTER NOZZLE | 55962D | - | - | - |
| *A | for Type A | *B | for Type B |
| *C | for 8 Inch Display | *D | for 12.3 Inch Display |

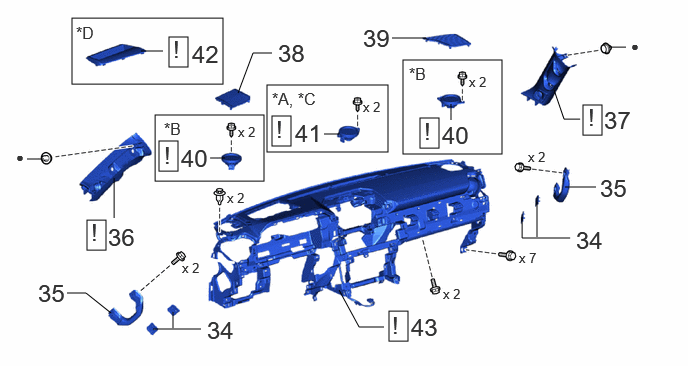

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 34 | ASSIST GRIP PLUG | - | - | - | - |
| 35 | PILLAR ASSIST GRIP ASSEMBLY | 74680 | - | - | - |
| 36 | FRONT PILLAR GARNISH ASSEMBLY LH | 62212B | See step 36 | - | - |
| 37 | FRONT PILLAR GARNISH ASSEMBLY RH | 62211U | See step 36 | - | - |
| 38 | NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | 55408F | - | - | - |
| 39 | NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | 55409F | - | - | - |
| 40 | FRONT NO. 2 SPEAKER ASSEMBLY | 86160P | See step 40 | - | - |
| 41 | FRONT NO. 3 SPEAKER ASSEMBLY | 86160J | See step 41 | - | - |
| 42 | INSTRUMENT CLUSTER FINISH PANEL END | 55414A | See step 42 | - | - |
| 43 | INSTRUMENT PANEL SAFETY PAD ASSEMBLY | - | See step 43 | - | - |
| *A | except 6 Speakers | *B | for Side |
| *C | for Center | *D | w/ Headup Display |
| • | Non-reusable part | - | - |
