Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front floor carpet assembly removal/installation are shown below.
HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front camera system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [02/2024 - ] - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Air Conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. - Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [02/2024 - ]
COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |

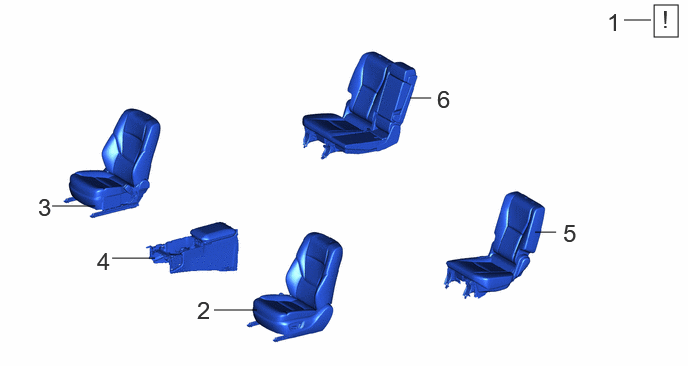

| 2 | FRONT SEAT ASSEMBLY LH | - | - | - | - |
| 3 | FRONT SEAT ASSEMBLY RH | - | - | - | - |
| 4 | FRONT CONSOLE BOX | - | - | - | - |
| 5 | REAR NO. 1 SEAT ASSEMBLY LH | - | - | - | - |
| 6 | REAR NO. 1 SEAT ASSEMBLY RH | - | - | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

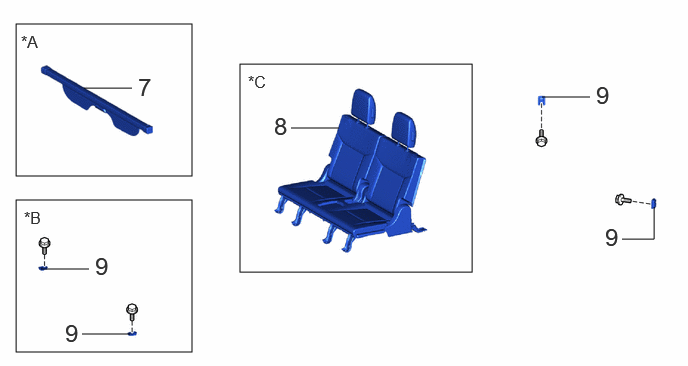

| 7 | TONNEAU COVER ASSEMBLY | 64910N | - | - | - |
| 8 | REAR NO. 2 SEAT ASSEMBLY | - | - | - | - |
| 9 | ROPE HOOK ASSEMBLY | - | - | - | - |
| *A | w/ Tonneau Cover | *B | w/o Rear No. 2 Seat |
| *C | w/ Rear No. 2 Seat | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

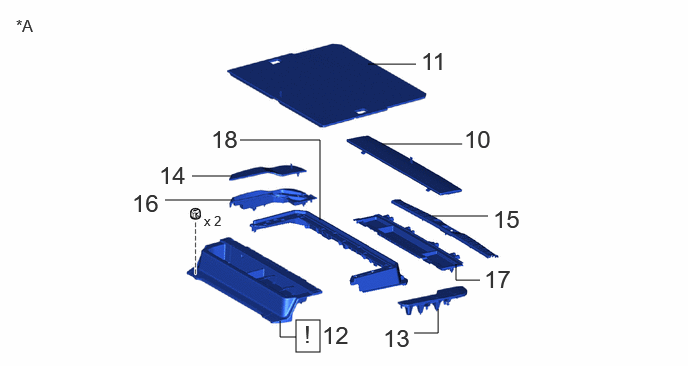

| 10 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 11 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 12 | REAR DECK FLOOR BOX | 64993 | See step 12 | - | - |
| 13 | REAR FLOOR BOARD REAR LH | 58418H | - | - | - |
| 14 | REAR FLOOR BOARD REAR RH | 58417B | - | - | - |
| 15 | REAR FLOOR REAR MAT SUPPORT PLATE | 58574A | - | - | - |
| 16 | DECK SIDE TRIM BOX RH | 64741B | - | - | - |
| 17 | REAR DECK FLOOR BOX | 64993 | - | - | - |
| 18 | REAR NO. 1 FLOOR BOARD ASSEMBLY | 58470E | - | - | - |
| *A | w/o Rear No. 2 Seat | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

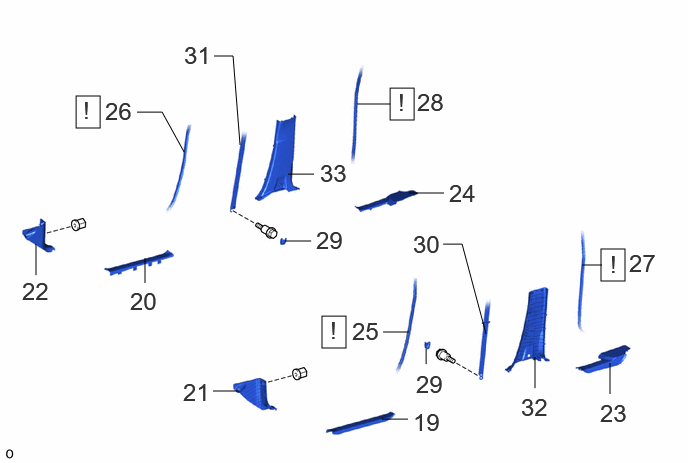

| 19 | FRONT DOOR SCUFF PLATE LH | 67914B | - | - | - |
| 20 | FRONT DOOR SCUFF PLATE RH | 67913B | - | - | - |
| 21 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 22 | COWL SIDE TRIM BOARD RH | 62111C | - | - | - |
| 23 | REAR DOOR SCUFF PLATE LH | 67918E | - | - | - |
| 24 | REAR DOOR SCUFF PLATE RH | 67917C | - | - | - |
| 25 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | 62312B | See step 25 | - | - |
| 26 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH | 62311B | See step 25 | - | - |
| 27 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | 62332C | See step 27 | - | - |
| 28 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | 62331C | See step 27 | - | - |
| 29 | OUTER LAP BELT ANCHOR COVER | 73233 | - | - | - |
| 30 | FRONT SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR) | 73220 | - | - | - |
| 31 | FRONT SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR) | 73210 | - | - | - |
| 32 | CENTER PILLAR LOWER GARNISH LH | 62414A | - | - | - |
| 33 | CENTER PILLAR LOWER GARNISH RH | 62413A | - | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 34 | OUTER LAP BELT ANCHOR COVER | 73233 | - | - | - |
| 35 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR) | 73370E | - | - | - |
| 36 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR) | 73360D | - | - | - |
| 37 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR) | 73570 | - | - | - |
| 38 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR) | 73560 | - | - | - |

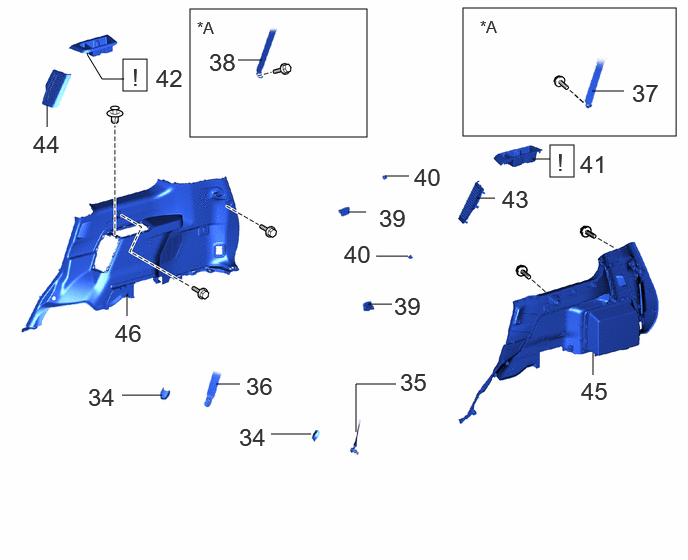

| 39 | NO. 1 TONNEAU COVER HOLDER CAP | 64937A | - | - | - |
| 40 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | 64725D | - | - | - |
| 41 | NO. 2 CUP HOLDER | 66992 | See step 41 | ||
| 42 | NO. 1 CUP HOLDER | 66991B | See step 41 | - | - |
| 43 | BATTERY SERVICE HOLE COVER ASSEMBLY LH | 58440J | - | - | - |
| 44 | BATTERY SERVICE HOLE COVER ASSEMBLY RH | 58440H | - | - | - |
| 45 | DECK TRIM SIDE PANEL ASSEMBLY LH | 64740C | - | - | - |
| 46 | DECK TRIM SIDE PANEL ASSEMBLY RH | 64730B | - | - | - |
| *A | w/o Rear No. 2 Seat | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

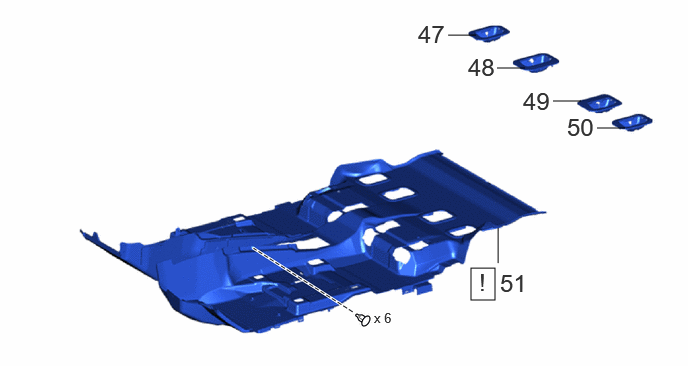

| 47 | REAR NO. 1 SEAT PROTECTOR | 71695S | - | - | - |
| 48 | REAR NO. 2 SEAT PROTECTOR | 71695T | - | - | - |
| 49 | REAR NO. 3 SEAT PROTECTOR | 71695Y | - | - | - |
| 50 | REAR NO. 1 SEAT PROTECTOR | 71695S | - | - | - |
| 51 | FRONT FLOOR CARPET ASSEMBLY | 58510D | - | - | - |
