Caution / Notice / Hint

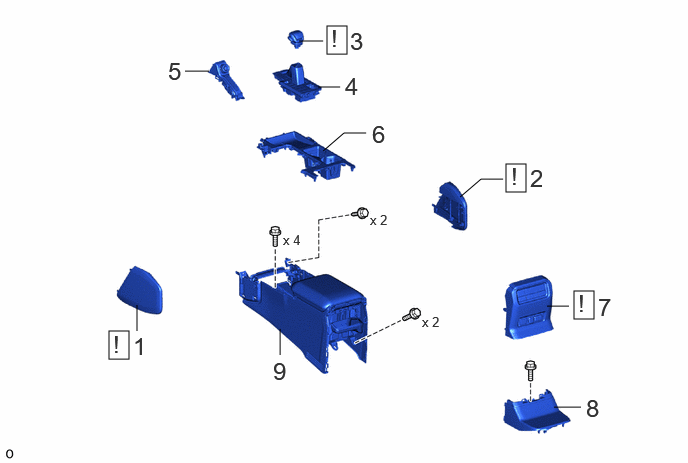

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY | 55402E | See step 1 | - | - |
| 2 | LOWER NO. 2 INSTRUMENT PANEL PAD SUB-ASSEMBLY | 55403G | See step 2 | - | - |
| 3 | SHIFT LEVER KNOB SUB-ASSEMBLY | 33504F | See step 3 | - | - |
| 4 | UPPER CONSOLE PANEL ASSEMBLY | - | - | - | - |
| 5 | INTEGRATION CONTROL AND PANEL SUB-ASSEMBLY | 84012 | - | - | - |
| 6 | UPPER CONSOLE PANEL SUB-ASSEMBLY | 58804A | - | - | - |
| 7 | CONSOLE REAR END PANEL SUB-ASSEMBLY | 58903A | See step 7 | - | - |
| 8 | NO. 2 CONSOLE REAR END PANEL SUB-ASSEMBLY | 58904C | - | - | - |
| 9 | CONSOLE BOX ASSEMBLY | - | - | - | - |
