Disassembly [02/2024 - ]: Procedure

  1. REMOVE CONSOLE BOX RETAINER

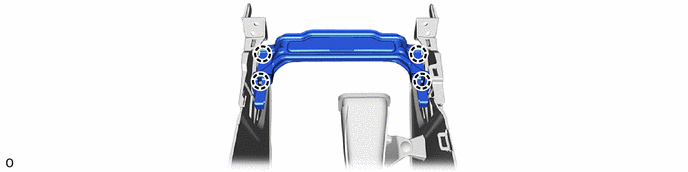

    1. GTY1222881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 2 CONSOLE BOX RETAINER

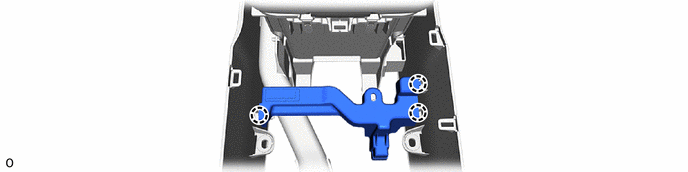

    1. GTY1222880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 BOX SIDE PANEL

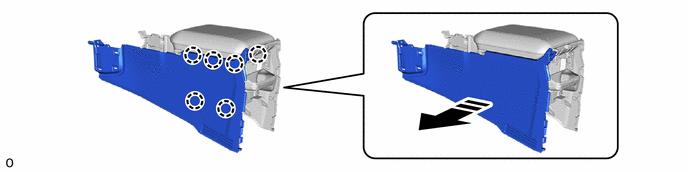

    1. GTY1220897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE NO. 1 BOX SIDE PANEL

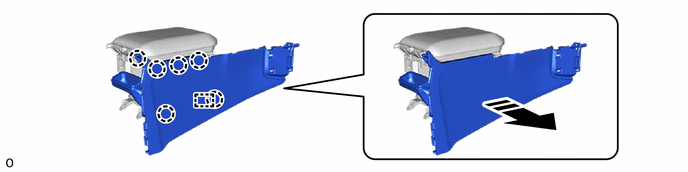

    1. GTY1220891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  5. REMOVE REAR CONSOLE BOX COVER

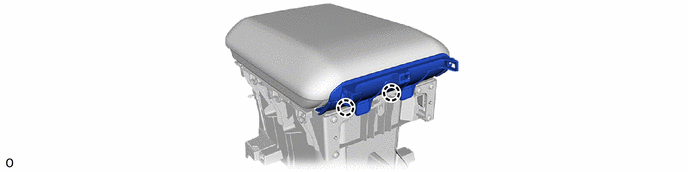

    1. GTY1222894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR CONSOLE ARMREST ASSEMBLY

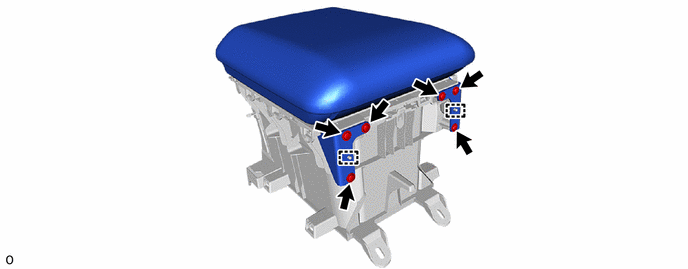

    1. GTY1222898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
