COMPONENTS (REMOVAL)

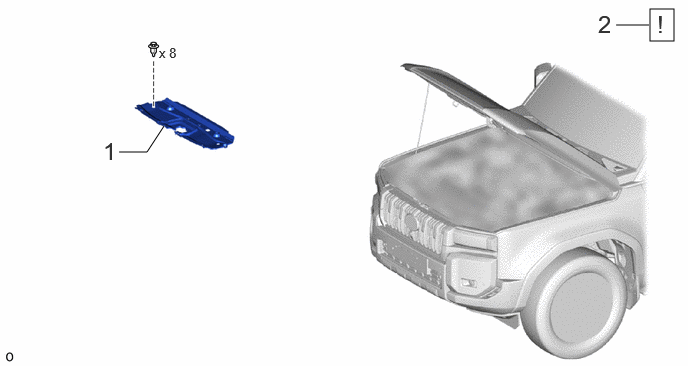

Fig 1: Front Console Box (W/ Cool Box) Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	UPPER RADIATOR SUPPORT SEAL	53292A	-	-	-
2	RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM	-	See step 2	-	-

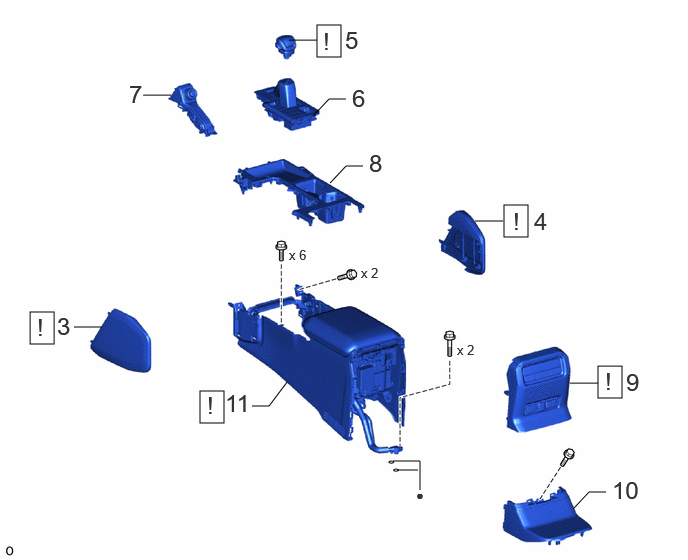

Fig 2: Front Console Box (W/ Cool Box) Removal Components (2 Of 2)

Procedure		Part Name Code
3	LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY	55402E	See step 3	-	-
4	LOWER NO. 2 INSTRUMENT PANEL PAD SUB-ASSEMBLY	55403G	See step 4	-	-
5	SHIFT LEVER KNOB SUB-ASSEMBLY	33504F	See step 5	-	-
6	UPPER CONSOLE PANEL ASSEMBLY	-	-	-	-
7	INTEGRATION CONTROL AND PANEL SUB-ASSEMBLY	84012	-	-	-
8	UPPER CONSOLE PANEL SUB-ASSEMBLY	58804A	-	-	-
9	CONSOLE REAR END PANEL SUB-ASSEMBLY	58903A	See step 9	-	-
10	NO. 2 CONSOLE REAR END PANEL SUB-ASSEMBLY	58904C	-	-	-
11	COOLING BOX ASSEMBLY	-	See step 11	-	-

•
