Caution / Notice / Hint

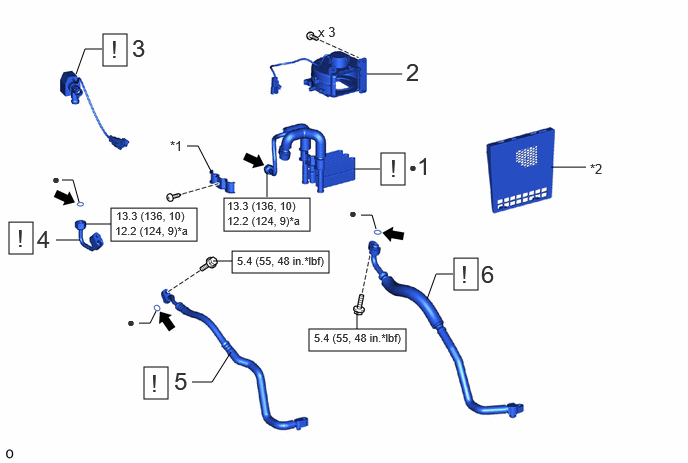

COMPONENTS (REASSEMBLY)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | COOLER (COOL BOX) EVAPORATOR SUB-ASSEMBLY | 88501E | See step 1 | - | - |
| 2 | COOL BOX BLOWER MOTOR WITH FAN SUB-ASSEMBLY | 87103F | - | - | - |
| 3 | COOLER MAGNET VALVE ASSEMBLY | 88690 | See step 3 | - | - |
| 4 | LIQUID TUBE | 88716 | See step 4 | - | - |
| 5 | LIQUID HOSE | 88721C | See step 5 | - | - |
| 6 | DISCHARGE HOSE | 88711H | See step 6 | - | - |
| *1 | BRACKET | *2 | COOLING UNIT CASE SUB-ASSEMBLY |
| *a | For use with 19mm union nut wrench | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Compressor oil ND-OIL 11 or equivalent | - | - |

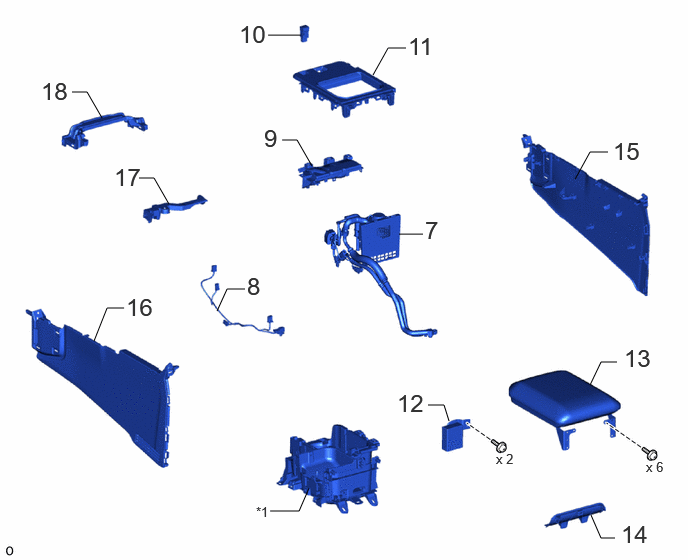

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 7 | NO. 2 COOLING BOX ASSEMBLY | 88530A | - | - | - |
| 8 | AIR CONDITIONER HARNESS | - | - | - | - |
| 9 | LOWER CONSOLE BOX | - | - | - | - |
| 10 | BLOWER CONTROL SWITCH ASSEMBLY | - | - | - | - |
| 11 | CONSOLE RETAINER | - | - | - | - |
| 12 | AIR PURIFIER AMPLIFIER ASSEMBLY | - | - | - | - |
| 13 | REAR CONSOLE ARMREST ASSEMBLY | 58920A | - | - | - |
| 14 | REAR CONSOLE BOX COVER | 58917A | - | - | - |
| 15 | NO. 1 BOX SIDE PANEL | - | - | - | - |
| 16 | NO. 2 BOX SIDE PANEL | - | - | - | - |
| 17 | NO. 2 CONSOLE BOX RETAINER | - | - | - | - |
| 18 | CONSOLE BOX RETAINER | - | - | - | - |
| *1 | CONSOLE BOX | - | - |
