Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. REMOVE INSTRUMENT SIDE PANEL LH
    Refer to PROCEDURE - Step 6
  3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    Refer to PROCEDURE - Step 7
  4. REMOVE LIGHT CONTROL RHEOSTAT

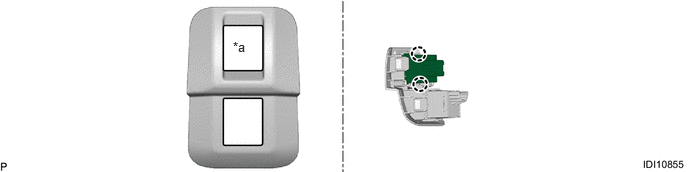

    1. GTY1050546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Light Control Rheostat - -
