Removal [06/2018 - 01/2019]: Procedure

Refer to PROCEDURE - Step 1

Refer to REMOVAL [06/2018 - 01/2019]

1. Disengage the claw and remove the No. 1 heater air duct splash shield seal from the outer cowl top panel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/ Windshield Deicer System:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect the connector.
2. Disengage the 2 clamps and separate the wire harness from the outer cowl top panel sub-assembly.
3. Disengage the clamp and separate the wire harness from the outer cowl top panel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the 9 bolts, 4 nuts and outer cowl top panel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the front suspension support dust cover from the front shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Temporarily install the 2 nuts to the front shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Loosen the front support to front shock absorber nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   WARNING:

   • Only loosen the front support to front shock absorber nut if the front shock absorber with coil spring needs to be disassembled.
   • Only loosen the front support to front shock absorber nut, do not remove it.
   • If the front support to front shock absorber nut is removed with the front coil spring under tension, components of the front shock absorber with coil spring may fly off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the nut and separate the front stabilizer link assembly from the front shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not damage the boot of the ball joint.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

1. Remove the bolt, disengage the clamp and separate the front speed sensor and front flexible hose from the front shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be sure to separate the front speed sensor and front flexible hose from the front shock absorber assembly completely.

1. Support the front lower No. 1 suspension arm sub-assembly using a jack and wooden block.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack
   	Front of the Vehicle
   	Wooden Block Placement Location

   NOTE:

   Keep the front lower No. 1 suspension arm sub-assembly supported until installation of the front shock absorber with coil spring is complete.

2. Remove the 2 bolts and 2 nuts, and separate the front shock absorber with coil spring (lower side) from the steering knuckle.
   NOTE:

   • When removing the nuts, keep the bolts from rotating.
   • Use wire or an equivalent tool to hang the separated steering knuckle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the 3 nuts, 2 spacers and front shock absorber with coil spring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Secure SST in a vise.
   • SST: 09727-00051
   • SST: 09727-30022
     1. 09727-00010
     2. 09727-00031

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Attach the hooks of each SST arm across the diameter of the coil spring.
   WARNING:

   • Make sure that the hooks are securely attached to the coil spring.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • Make sure that the hooks of the upper and lower SST arms are attached to the coil spring so that the distance between the hooks is as large as possible.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • Make sure that the arms of SST are parallel and the number of coils between the arms is the same on each side.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
3. Install the stopper pins to the hooks of SST.
   WARNING:

   • Make sure that the stopper pins are installed securely.
   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Install SST and 2 vehicle nuts to the upper support as shown in the illustration.
   • SST: 09727-30022
     1. 09727-00090
     2. 09727-00100

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Vehicle Nut

5. Using SST, compress the coil spring.
   WARNING:

   • If the coil spring starts to bow out while using SST, stop immediately and reattach SST correctly.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • Do not compress the coil spring to the point where the coils touch each other.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • Do not use an impact wrench.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If an impact wrench is used, the threads of SST may be damaged, or sudden compression of the coil spring may cause a hook to disengage and the coil spring to fly out, resulting in injury.
   • If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a stopper pin is removed, install a coil spring stopper belt as shown in the illustration.
   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • SST: 09727-00110
6. Check that the coil spring has become detached, and then remove the front support to front shock absorber nut.
   WARNING:

   • Do not remove the front support to front shock absorber nut while the coil spring is under tension.
   • If the front support to front shock absorber nut is removed with the coil spring under tension, components of the front shock absorber with coil spring may fly off, resulting in injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the collar from the front shock absorber assembly.

1. Remove the front suspension support sub-assembly from the front shock absorber assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

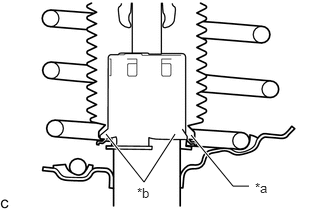

   *a	Front No. 1 Shock Absorber Dust Cover
   *b	Claw

   Disengage the end of the front No. 1 shock absorber dust cover from the claws of the front shock absorber assembly.

2. Remove the strut mounting bearing with dust cover from the front shock absorber assembly.

1. Remove the front upper coil spring insulator from the strut mounting bearing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this direction

1. Disengage the top end of the front No. 1 shock absorber dust cover to remove the strut mounting bearing from the shock absorber dust cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the front coil spring and SST.
   NOTE:

   Do not use an impact wrench. It will damage SST.

1. Remove the front spring bumper from the front shock absorber assembly.

1. Remove the front lower coil spring insulator from the front shock absorber assembly.
