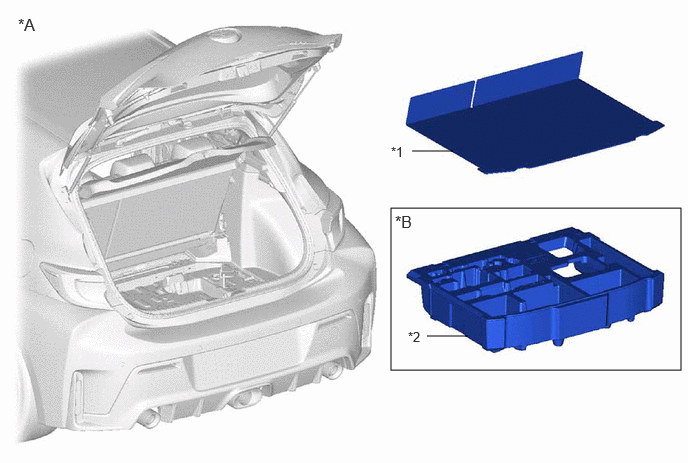

Components [09/2022 - 11/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for G16E-GTS | *B | for Type A |
| *1 | DECK BOARD ASSEMBLY | *2 | SPARE WHEEL CUSHION |
Fig 2: Center Airbag Sensor Assembly Replacement Components With Torque Specifications [09/2022 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | FRONT NO. 1 CONSOLE BOX INSERT |
| *3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
