Components [06/2018 - 09/2022]

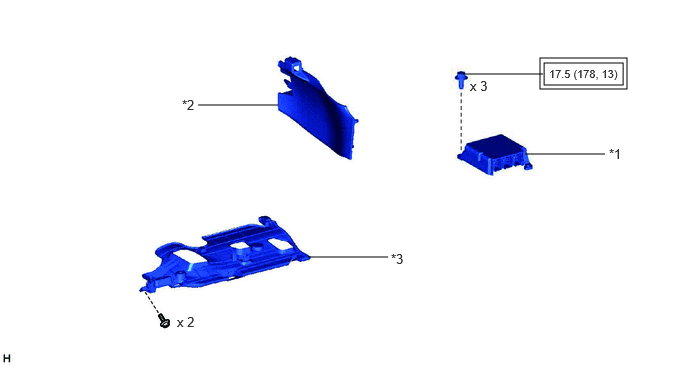

Fig 1: Center Airbag Sensor Assembly Replacement Components With Torque Specifications [06/2018 - 09/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | FRONT NO. 1 CONSOLE BOX INSERT |
| *3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
