Removal [09/2022 - 11/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2022 - ]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

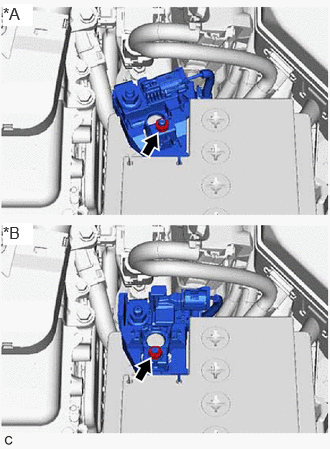

    1. Loosen the nut, and disconnect the cable from the negative (-) auxiliary battery terminal.
      GTY1108391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A
      *B Type B
  3. REMOVE AUXILIARY BATTERY

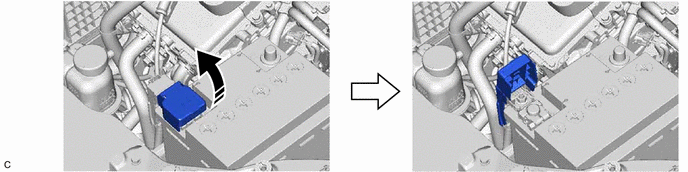

    1. Open the fusible link cover.
      GTY1108753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

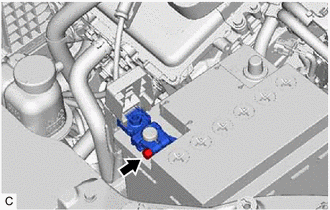

    2. Loosen the nut and disconnect the cable from the positive (+) auxiliary battery terminal.
      GTY1105110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt.
      GTY882155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Remove the No. 2 battery clamp as shown in the illustration.
    5. Remove the auxiliary battery.
