Removal [01/2019 - 09/2022]: Procedure
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

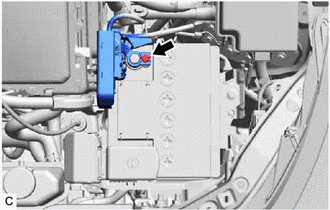

- Loosen the nut, and disconnect the cable from the negative (-) auxiliary battery terminal.NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [01/2019 - 03/2019] , or refer to INITIALIZATION [03/2019 - 09/2019] , or refer to INITIALIZATION [09/2019 - 04/2020] , or refer to INITIALIZATION [04/2020 - 09/2022]
- Loosen the nut, and disconnect the cable from the negative (-) auxiliary battery terminal.
- REMOVE AUXILIARY BATTERY

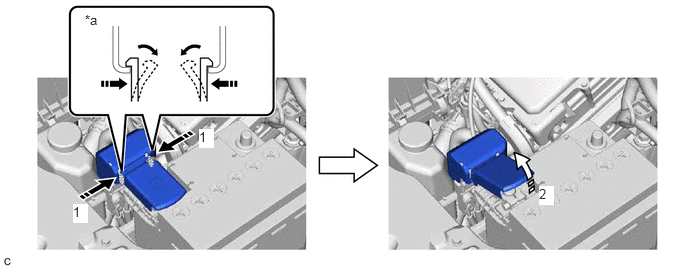

- Disengage the 2 claws and open the fusible link cover in the order shown in the illustration.

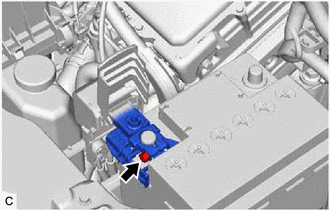

*a Top View of Claws - - Push fusible link cover here Push Open - - - Loosen the nut and disconnect the cable from the positive (+) auxiliary battery terminal.
- Remove the bolt.

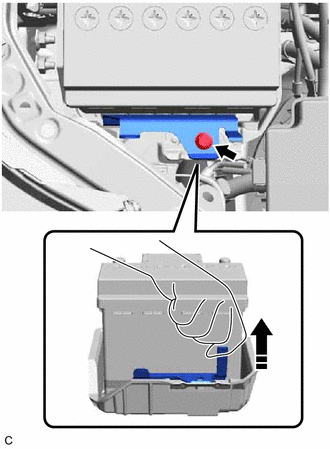

Remove in this Direction - Remove the No. 2 battery clamp as shown in the illustration.
- Remove the auxiliary battery.
- Disengage the 2 claws and open the fusible link cover in the order shown in the illustration.
