Removal [01/2019 - 11/2022]: Procedure

Refer to PROCEDURE - Step 1

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

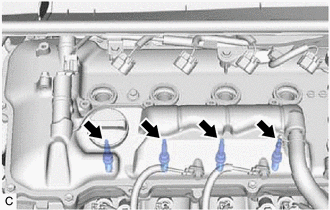

   Remove the 4 spark plugs from the cylinder head sub-assembly.

   NOTE:

   If a spark plug has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.
