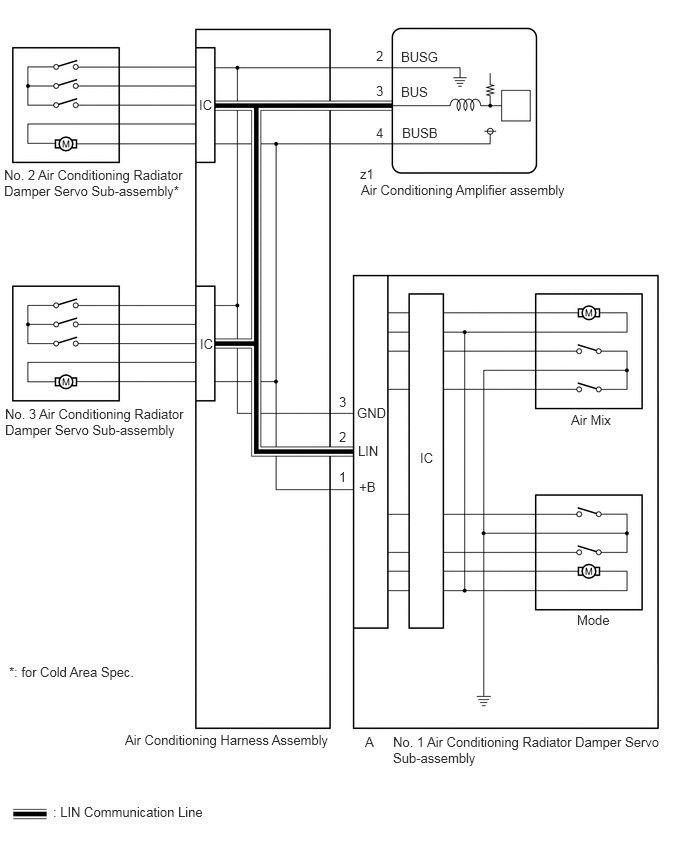

DTC B1497: Communication Malfunction (Bus Ic) [01/2019 - 09/2022]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY897796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
