DTC B1498-87: A/C Inverter Local Missing Message [09/2022 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

for 2WD:

GTY1111271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

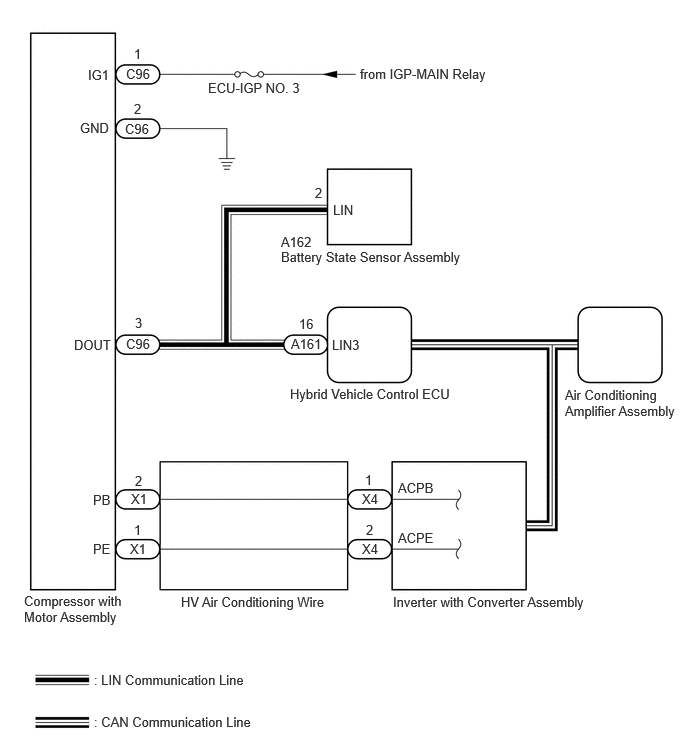

for 4WD:

GTY1118078

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
