Components [01/2019 - ]
WARNING: This page is about a different variant/trim than selected.

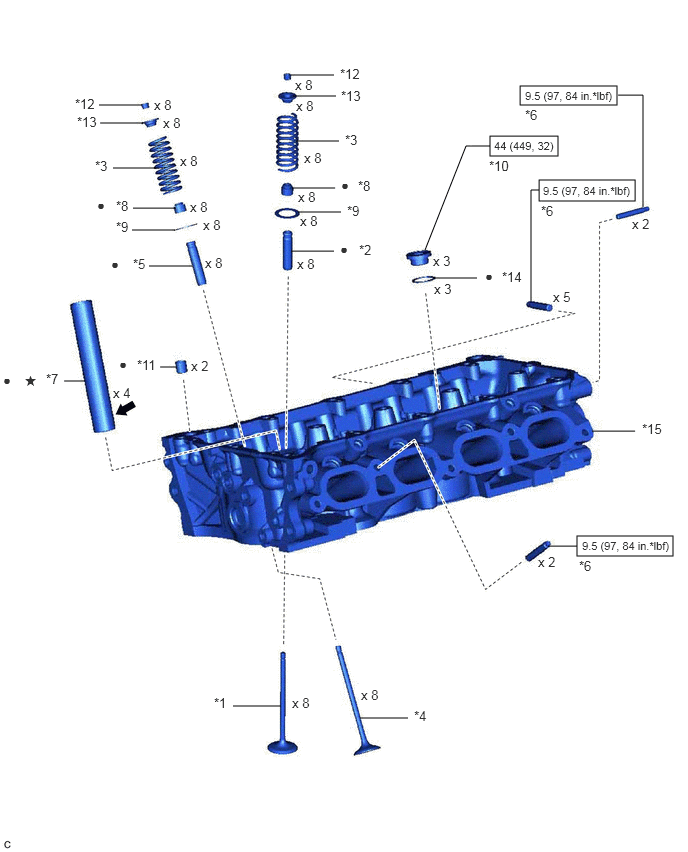

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INTAKE VALVE | *2 | INTAKE VALVE GUIDE BUSH |
| *3 | INNER COMPRESSION SPRING | *4 | EXHAUST VALVE |
| *5 | EXHAUST VALVE GUIDE BUSH | *6 | STUD BOLT |
| *7 | SPARK PLUG TUBE | *8 | VALVE STEM OIL SEAL |
| *9 | VALVE SPRING SEAT | *10 | NO. 2 STRAIGHT SCREW PLUG |
| *11 | RING PIN | *12 | VALVE SPRING RETAINER LOCK |
| *13 | VALVE SPRING RETAINER | *14 | GASKET |
| *15 | CYLINDER HEAD SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
