Check Bus 7 Line [09/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

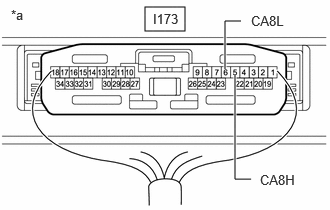

      GTY1117577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-5 (CA8H) - I173-6 (CA8L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1117577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-5 (CA8H) - I173-6 (CA8L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

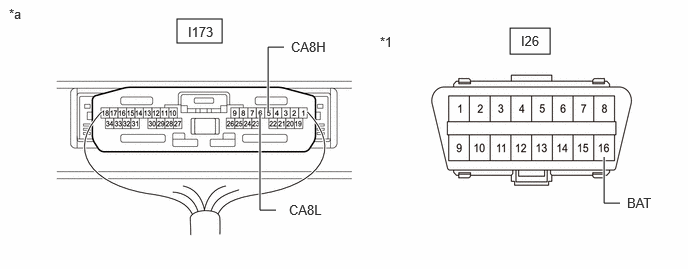

      GTY1118943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-5 (CA8H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I173-6 (CA8L) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  7

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

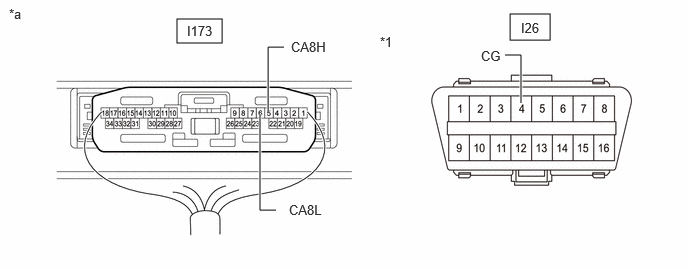

      GTY1115391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-5 (CA8H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I173-6 (CA8L) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - 09/2024] , or refer to REMOVAL [09/2024 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

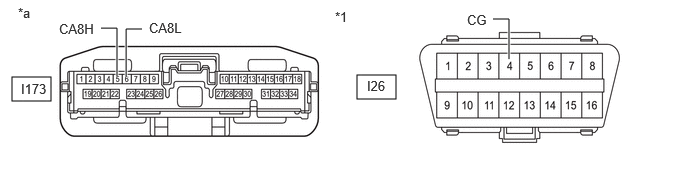

      GTY1111802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-5 (CA8H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I173-6 (CA8L) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - 09/2024] , or refer to REMOVAL [09/2024 - ]

    Result:

    NG

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Disconnect the I174 option connector (bus buffer ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Option Connector (Bus Buffer ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I174-2 (CAN+) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I174-1 (CAN-) - I26-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  7. CHECK FOR SHORT TO +B IN CAN BUS LINE (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

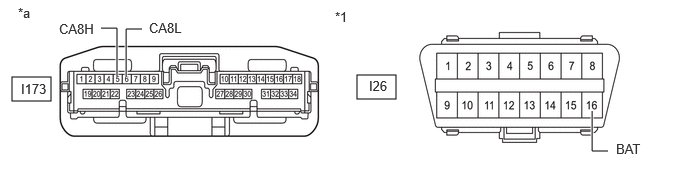

      GTY1111803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-5 (CA8H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I173-6 (CA8L) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - 09/2024] , or refer to REMOVAL [09/2024 - ]

    Result:

    NG

    See step  8

  8. CHECK FOR SHORT TO +B IN CAN BUS LINE (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Disconnect the I174 option connector (bus buffer ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Option Connector (Bus Buffer ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I174-2 (CAN+) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I174-1 (CAN-) - I26-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  9. CHECK FOR SHORT IN CAN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1115368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-5 (CA8H) - I173-6 (CA8L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - 09/2024] , or refer to REMOVAL [09/2024 - ]

    Result:

    NG

    See step  10

  10. CHECK FOR SHORT IN CAN BUS LINES (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Reconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the I174 option connector (bus buffer ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1114756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Option Connector (Bus Buffer ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I174-2 (CAN+) - I174-1 (CAN-) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  11. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1115368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I173-5 (CA8H) - I173-6 (CA8L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - 09/2024] , or refer to REMOVAL [09/2024 - ]

    Result:

    NG

    See step  12

  12. CHECK FOR OPEN IN CAN MAIN BUS LINES (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Reconnect the I173 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the I174 option connector (bus buffer ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1114756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Option Connector (Bus Buffer ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I174-2 (CAN+) - I174-1 (CAN-) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
